Babao 60 HE Module
Built for competitive play. This 60% Hall Effect module runs 8,000 Hz polling at 0.08 ms latency on a 2 mm aviation-grade aluminum PCB, ready for your GH60 build.
Read MoreSpecs
Polling rate
8,000 Hz
Response latency
0.08 ms
Switch type
Hall Effect
Layout
GH60 60%
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-

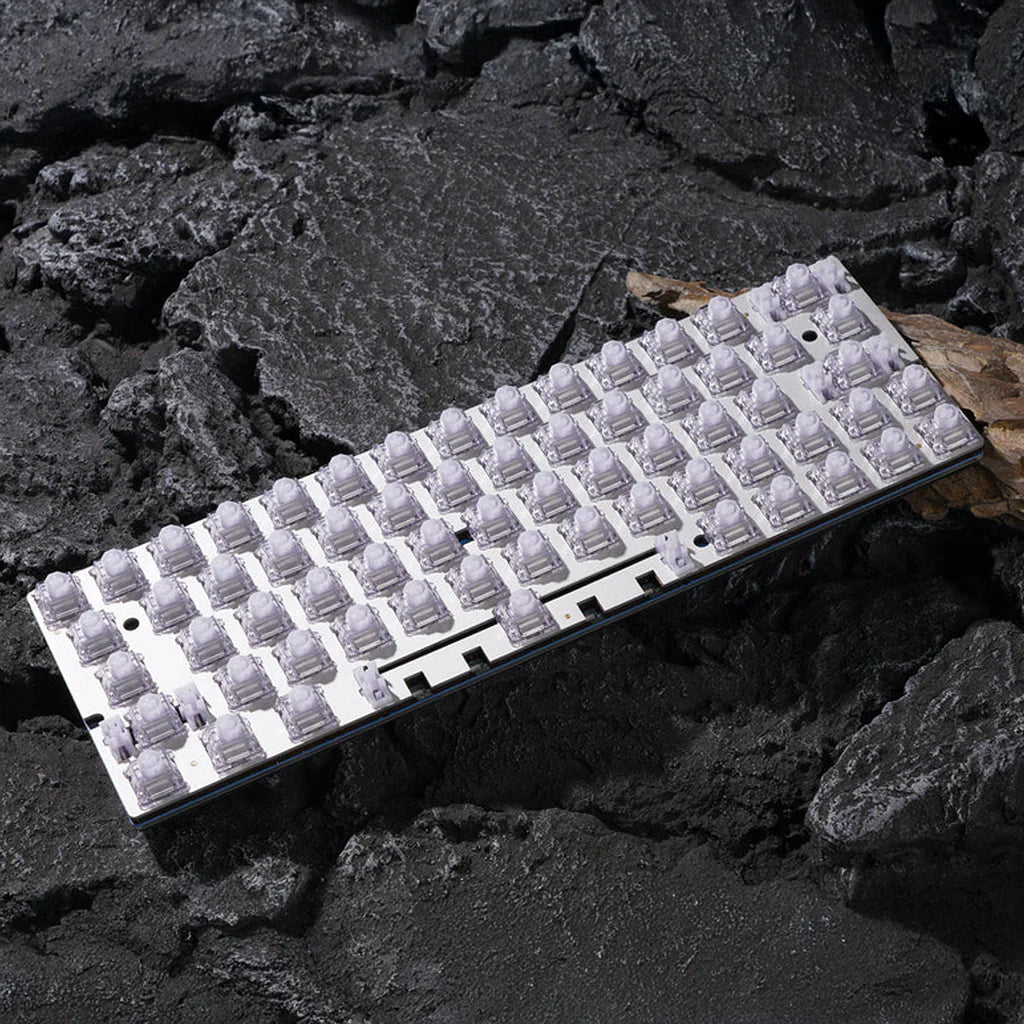

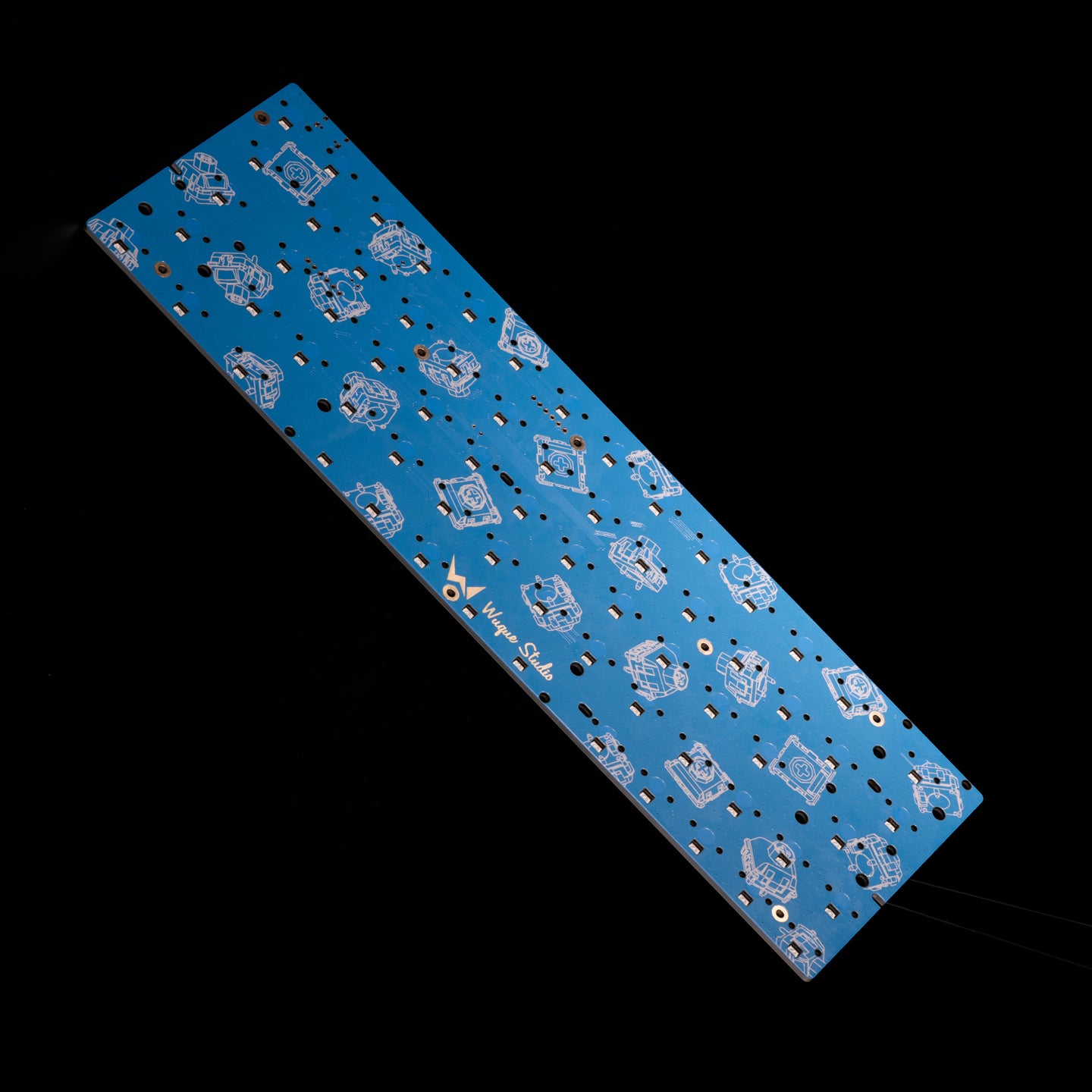

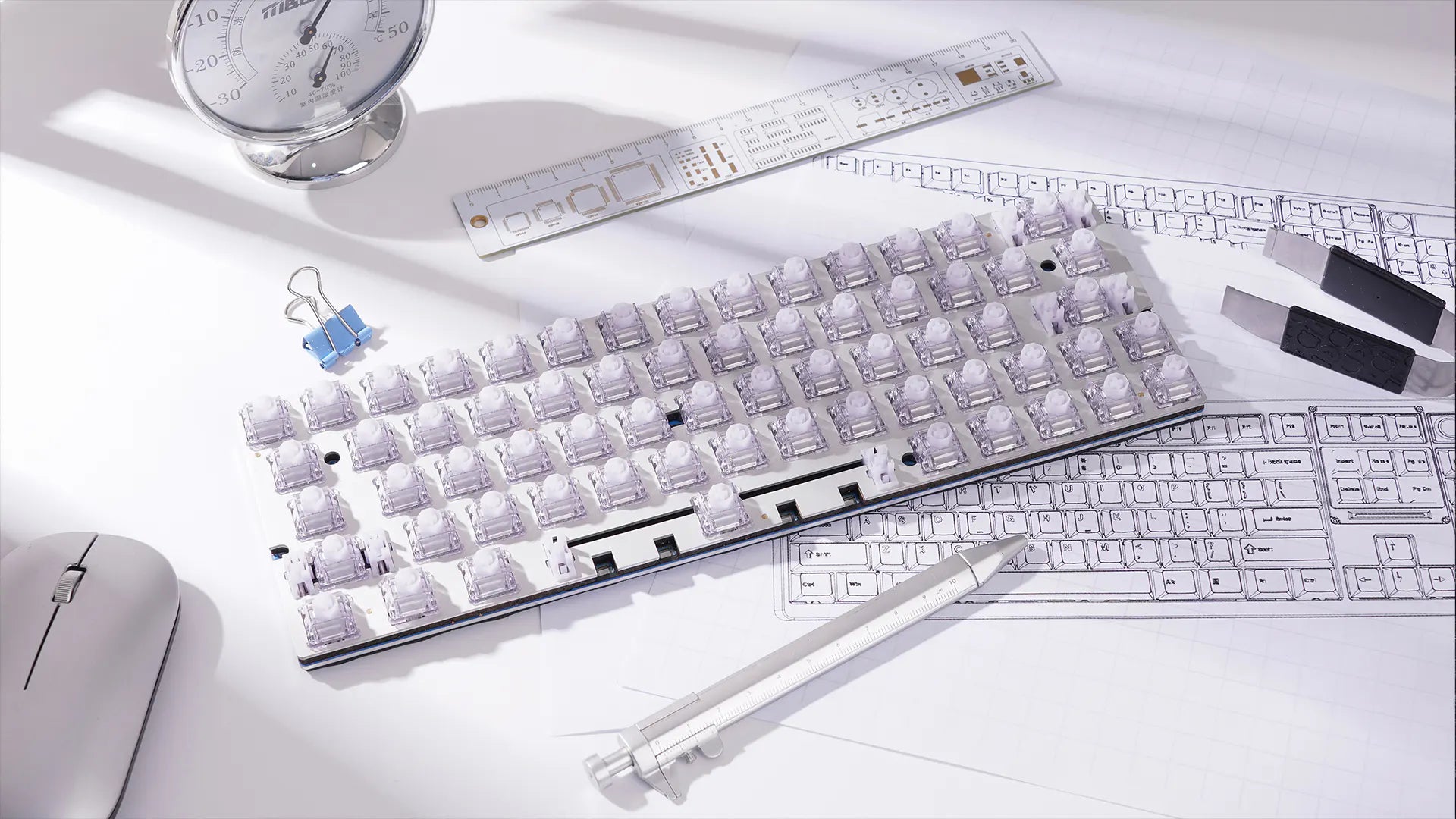

Flux60 HE(Babao 60 HE)Module - The 1st Aluminium Hall Effect PCB
A gaming-grade 60% Hall Effect keyboard PCB module built for competitive play and everyday use. The 2 mm aviation-grade aluminum PCB provides superior heat dissipation and structural rigidity. Runs at 8,000 Hz polling rate with an ultra-low 0.08 ms response latency. South-facing full-key RGB with music sync support. Configured via an instant web-based driver — no software installation required. Compatible with Windows, macOS, and Linux.
What’s in the box
•PCB module x1
WS Flux Ocean Whisper switches (if switch bundle selected)
Specs
Specifications
Polling rate
8,000 Hz
Response latency
0.08 ms
Switch type
Hall Effect
Layout
GH60 60%
PCB material
Aviation-grade aluminum, 2 mm thick
Lighting
South-facing full-key RGB with music sync
Software
Web-based driver, no installation required
Compatibility
AIM60, AIM60X, AIMCUBE, and other GH60-layout cases

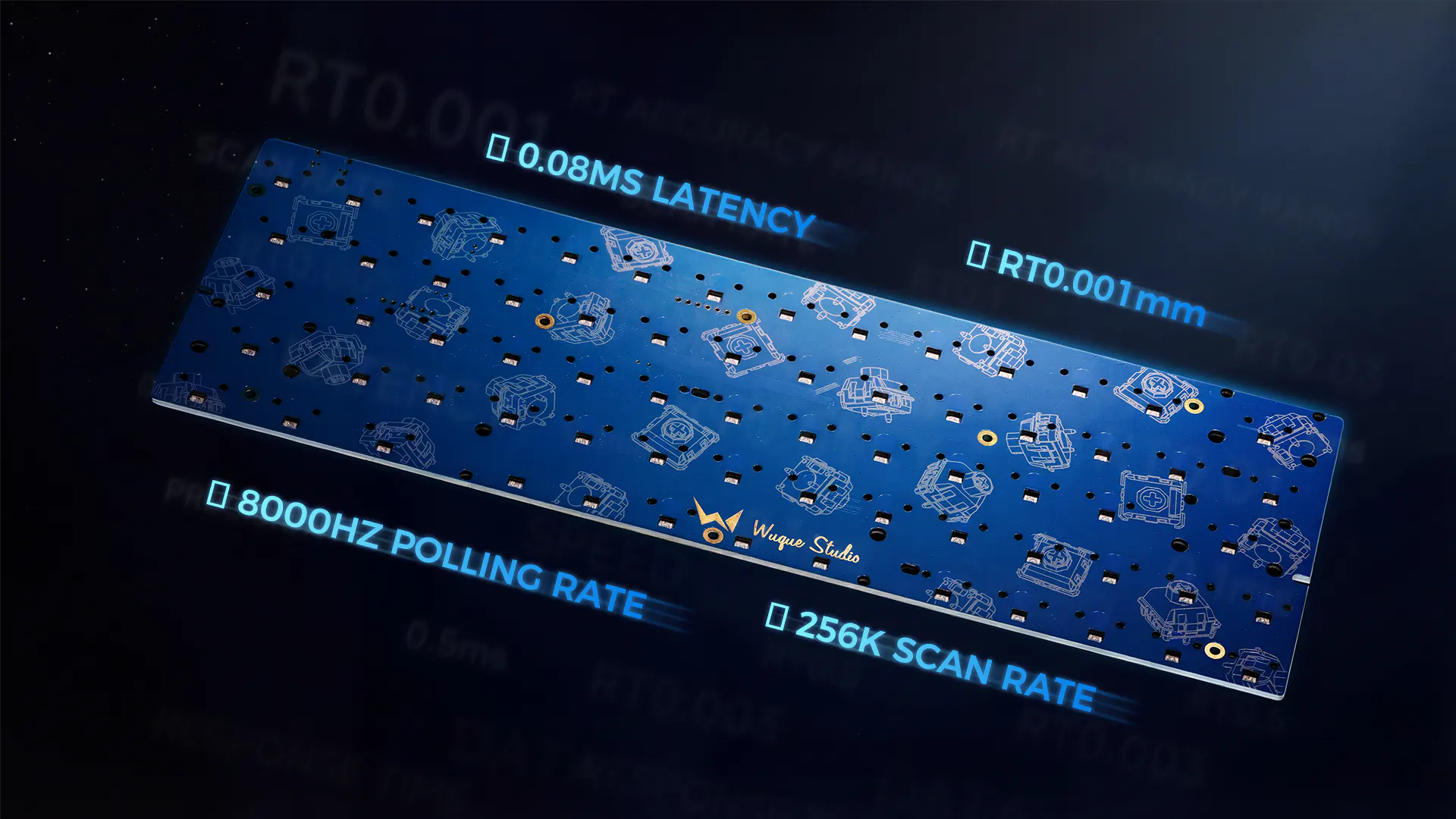

Precision&Response
Ultra-low 0.08ms latency for accurate actuation.256KHz scan rate & 8000Hz polling rate ensure real-time signal synchronization.

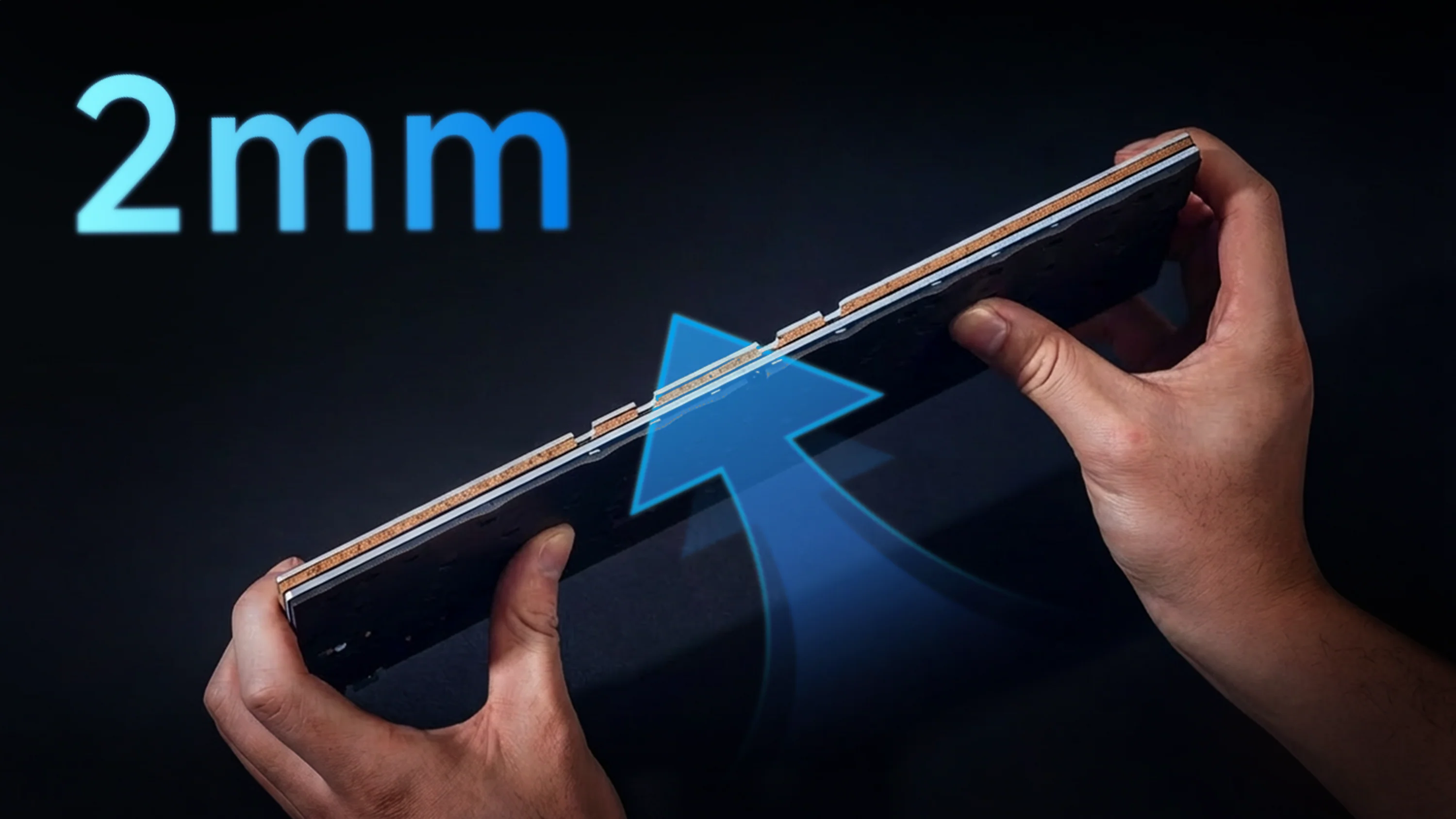

Aluminum dissipates heat 50 times faster than FR4
Powered by automotive-grade thermal technology, our keyboard utilizes a 2mm-thick aluminum PCB substrate. This is the same material used in high-power LED headlights, chosen because aluminum dissipates heat drastically faster than traditional FR4 to ensure extreme stability.

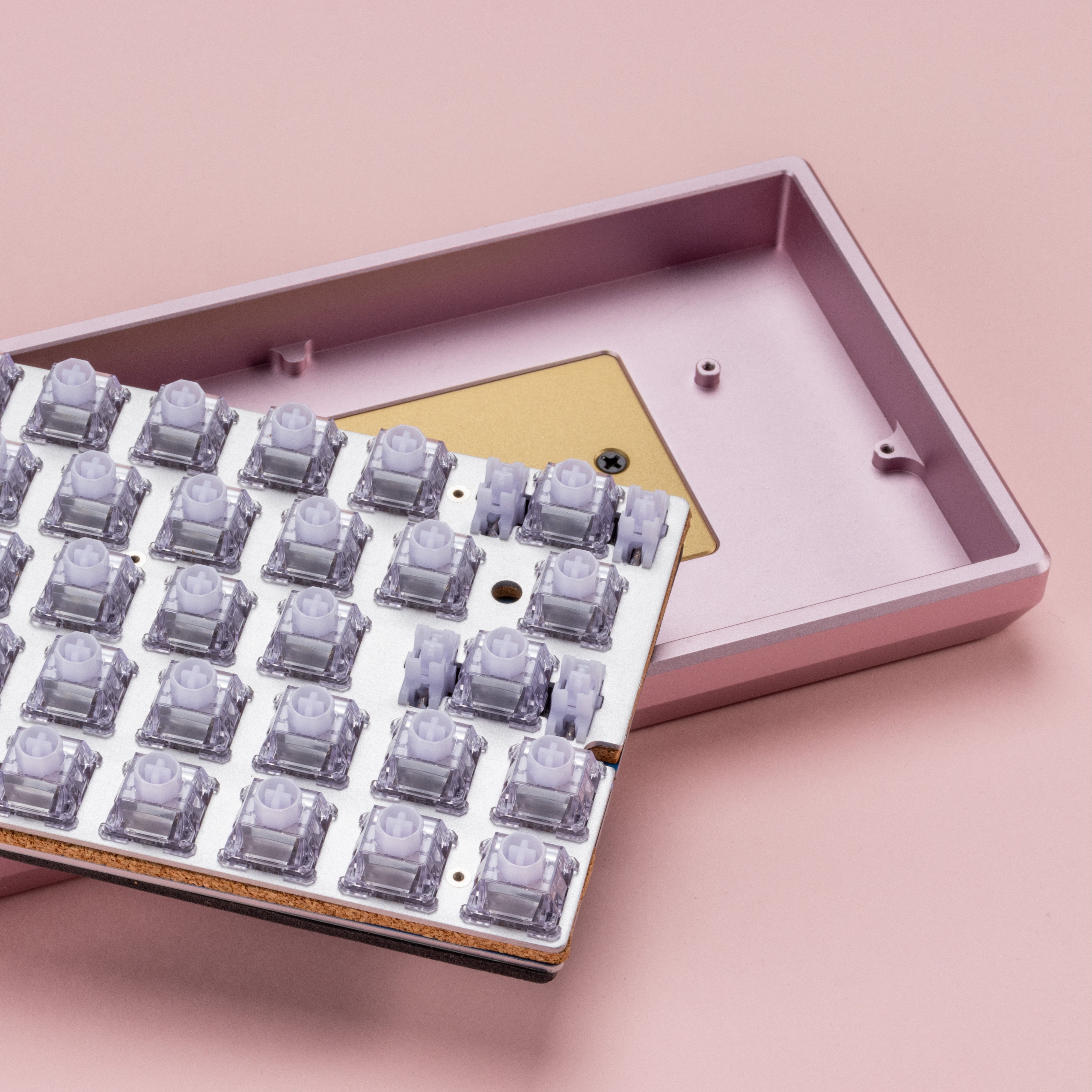

Triple-Rigid Internal Structure

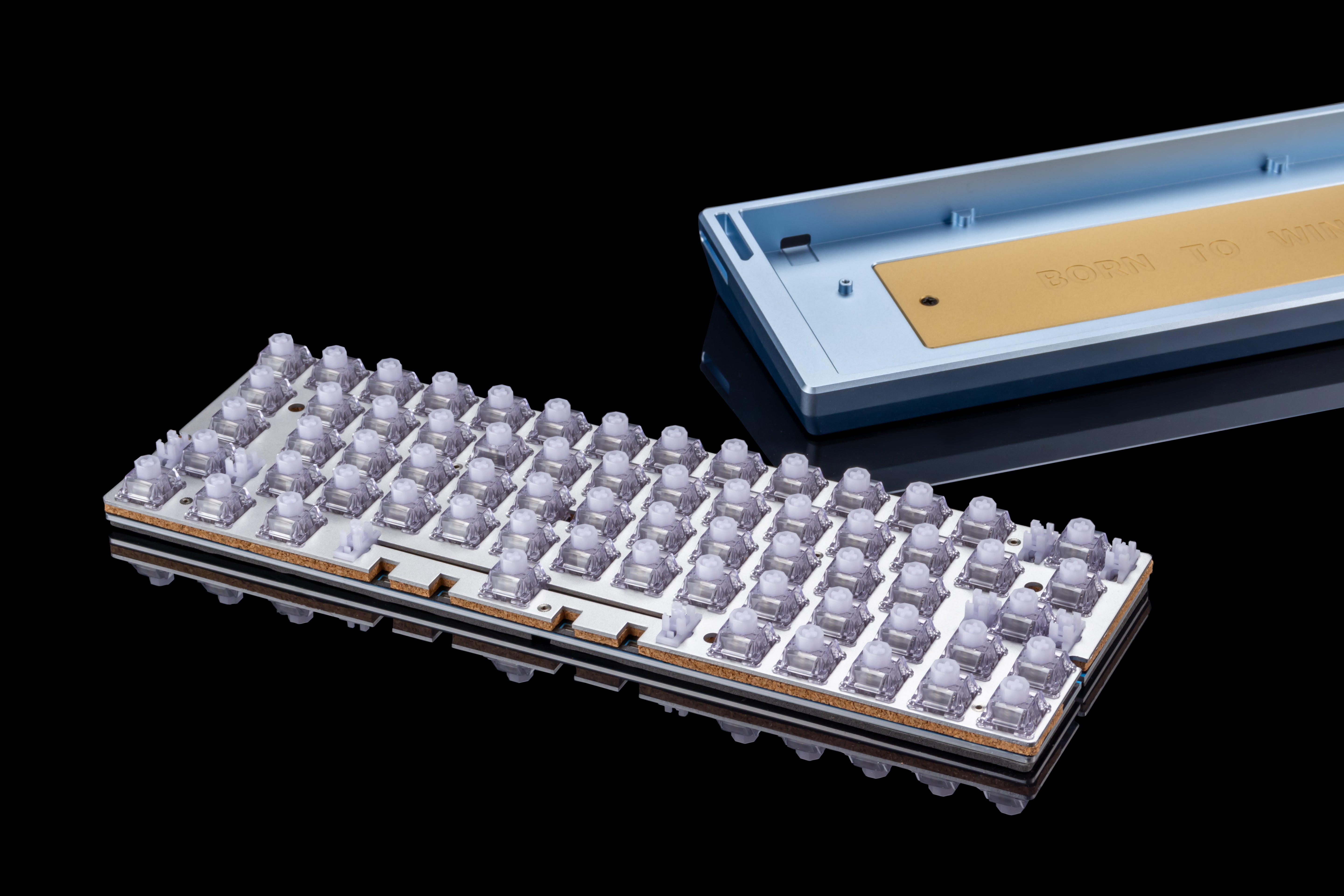

2mm Aluminum PCB + Aluminum Plate + Cork Foam.This high-rigidity stack resists flex for absolute structural stability.

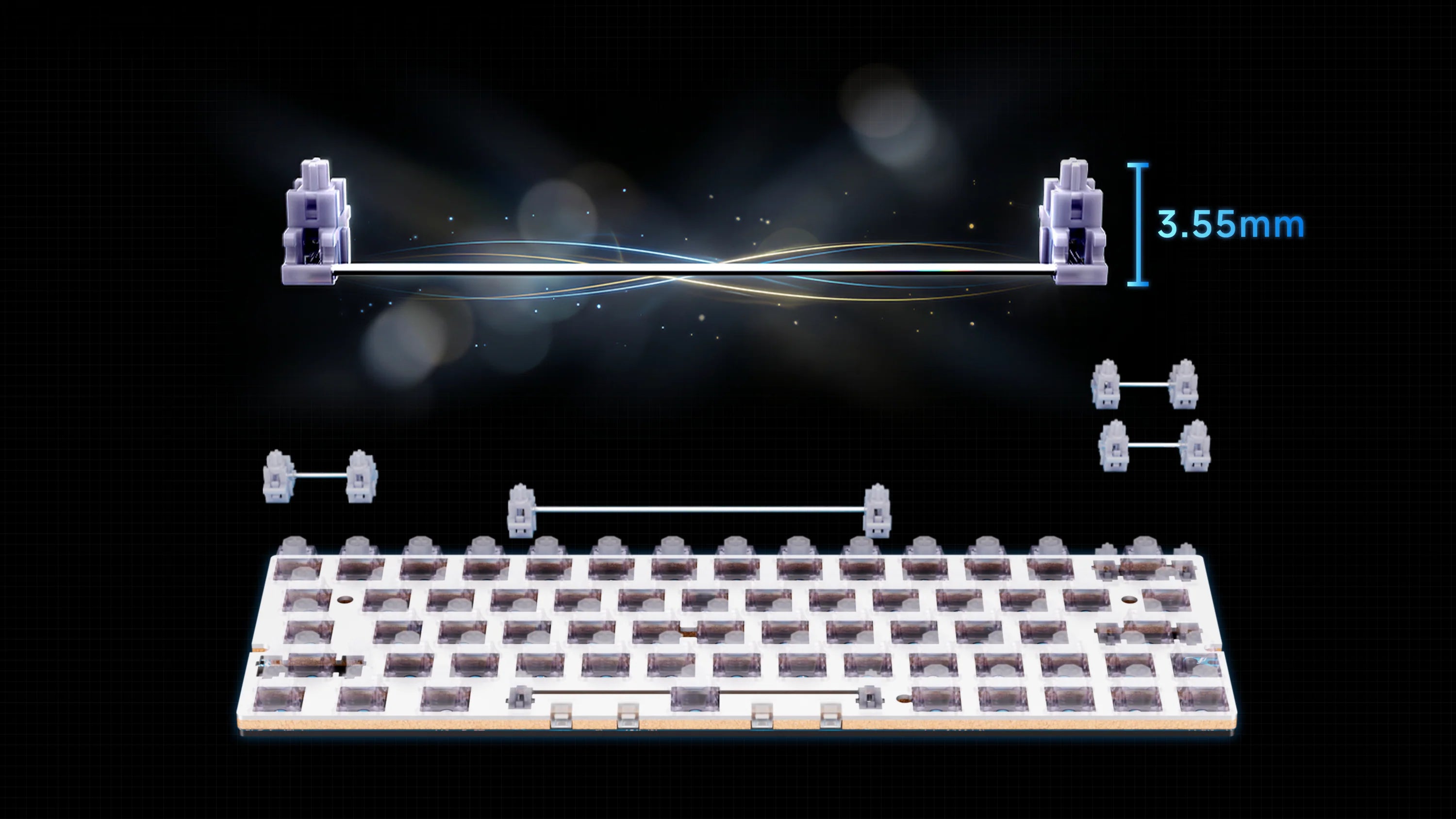

Customized Stabilizers
Magnetic switch-specific 3.5mm travel stabilizers eliminate “see-saw” effect, ensuring consistent feel and actuation on large keys.
Core Specifications
Connection: Wired Only (Single-Mode)
Driver: Web Driver(language switch supported)

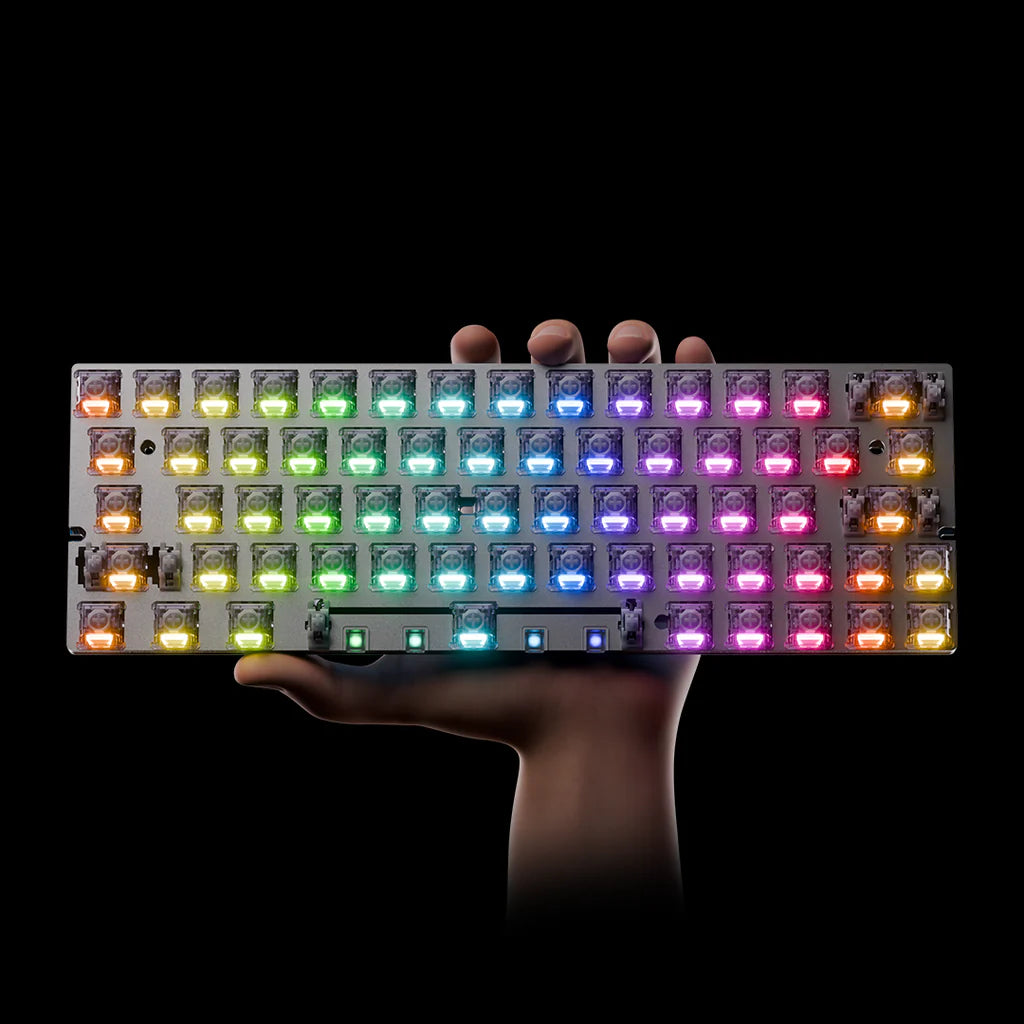

RGB & Sync: South-Facing LEDs with Music Sync Support
Compatibility: Windows / macOS / Linux

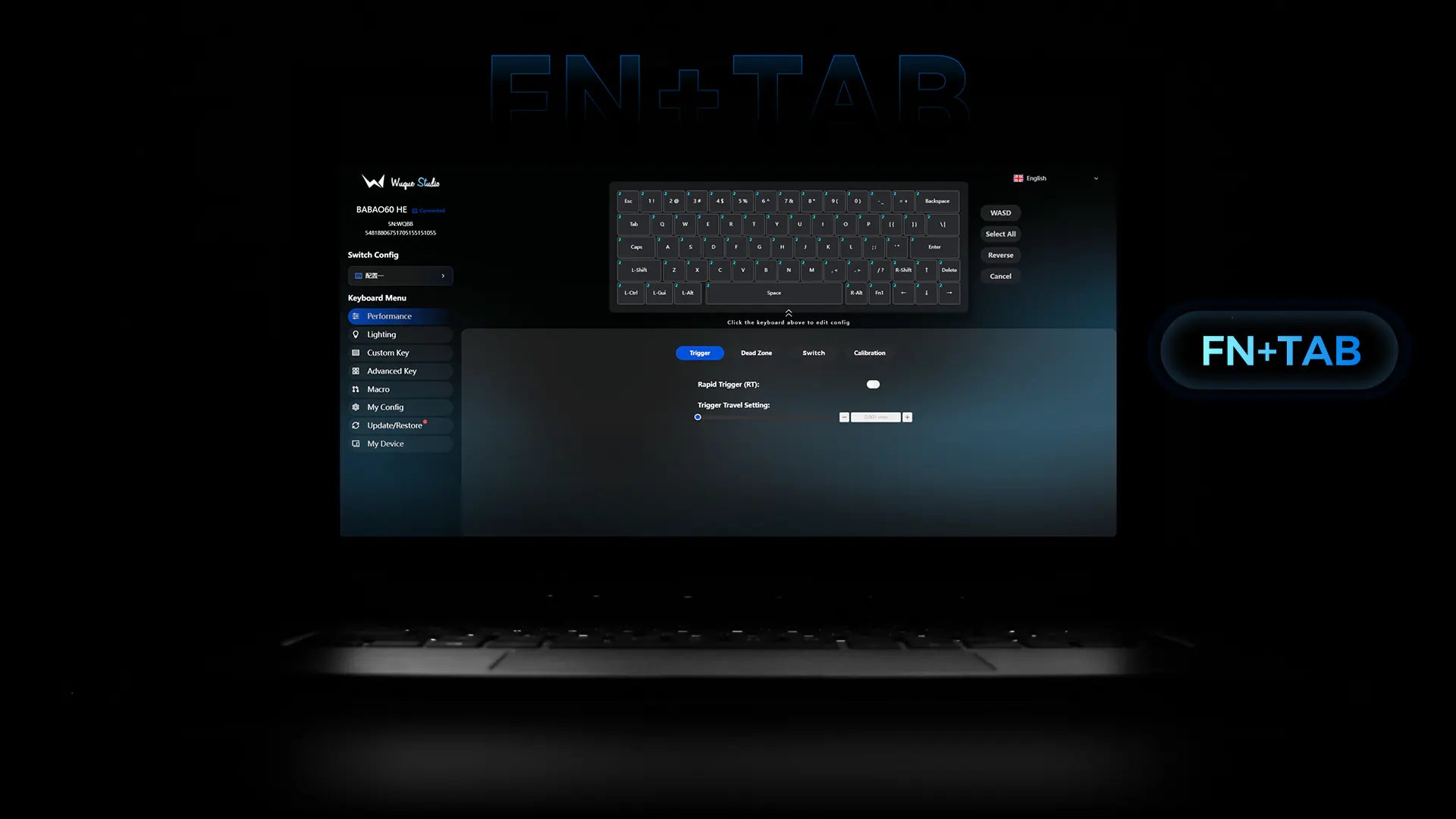

Instant Web-Based Driver
No installation needed. Press Fn + TAB to instantly launch the configuration interface in your browser for easy adjustments.

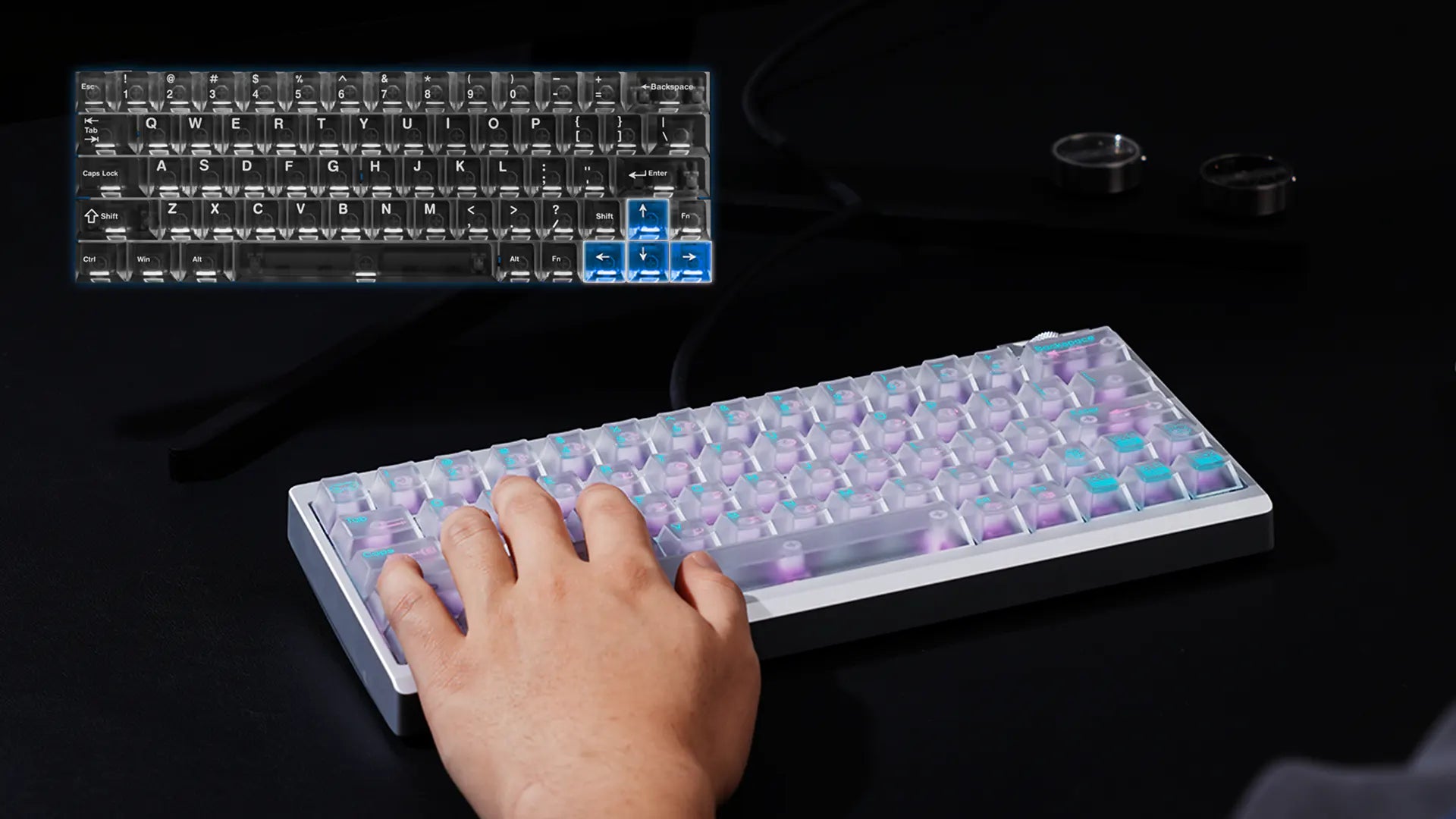

Practical Compact Layout
60% form factor (64-key) with dedicated arrow keys. Balances a compact footprint for gaming with utility for daily work.

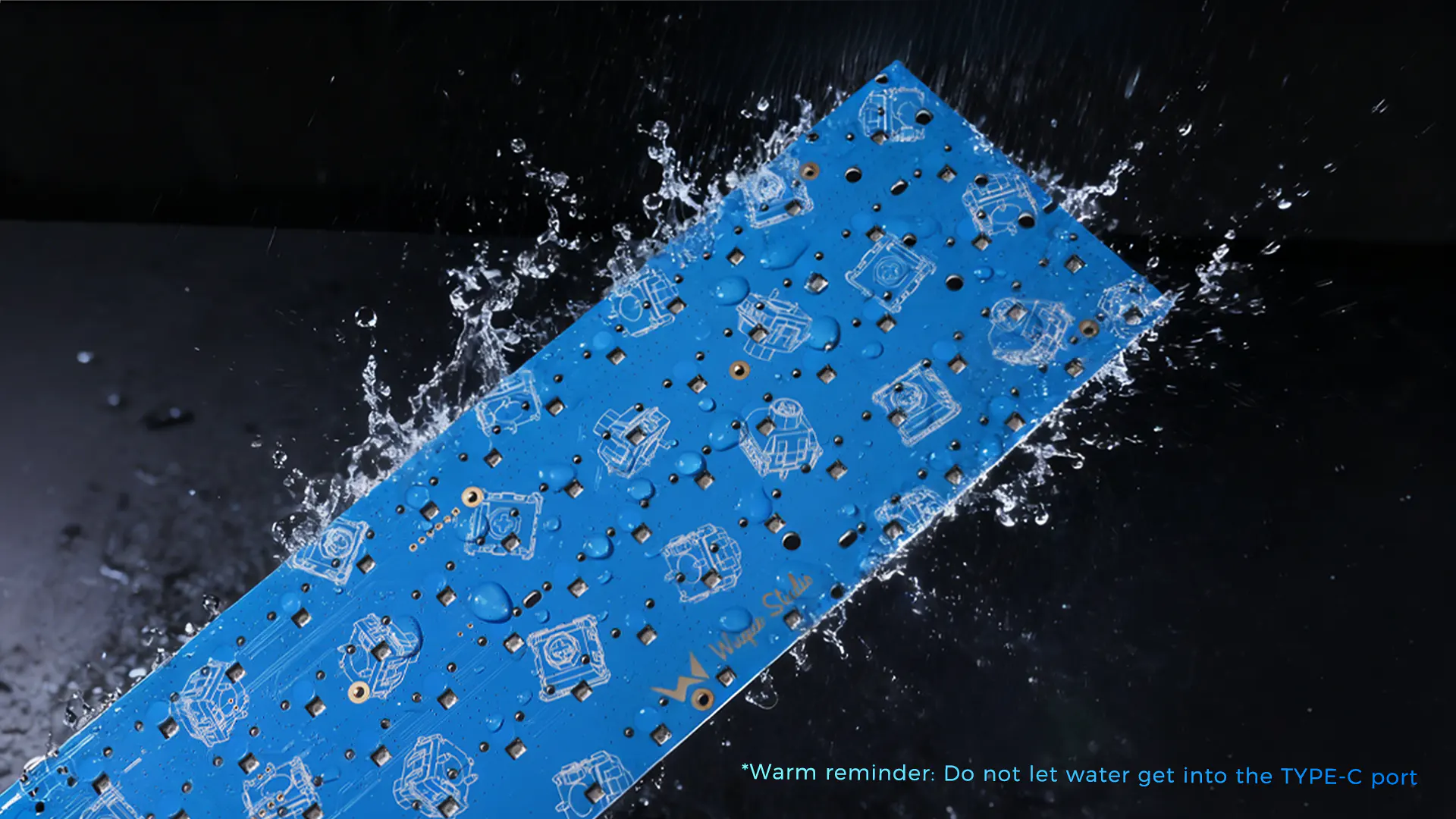

Water-Resistant PCB
The PCB features a water-resistant coating, providing basic protection against accidental spills.

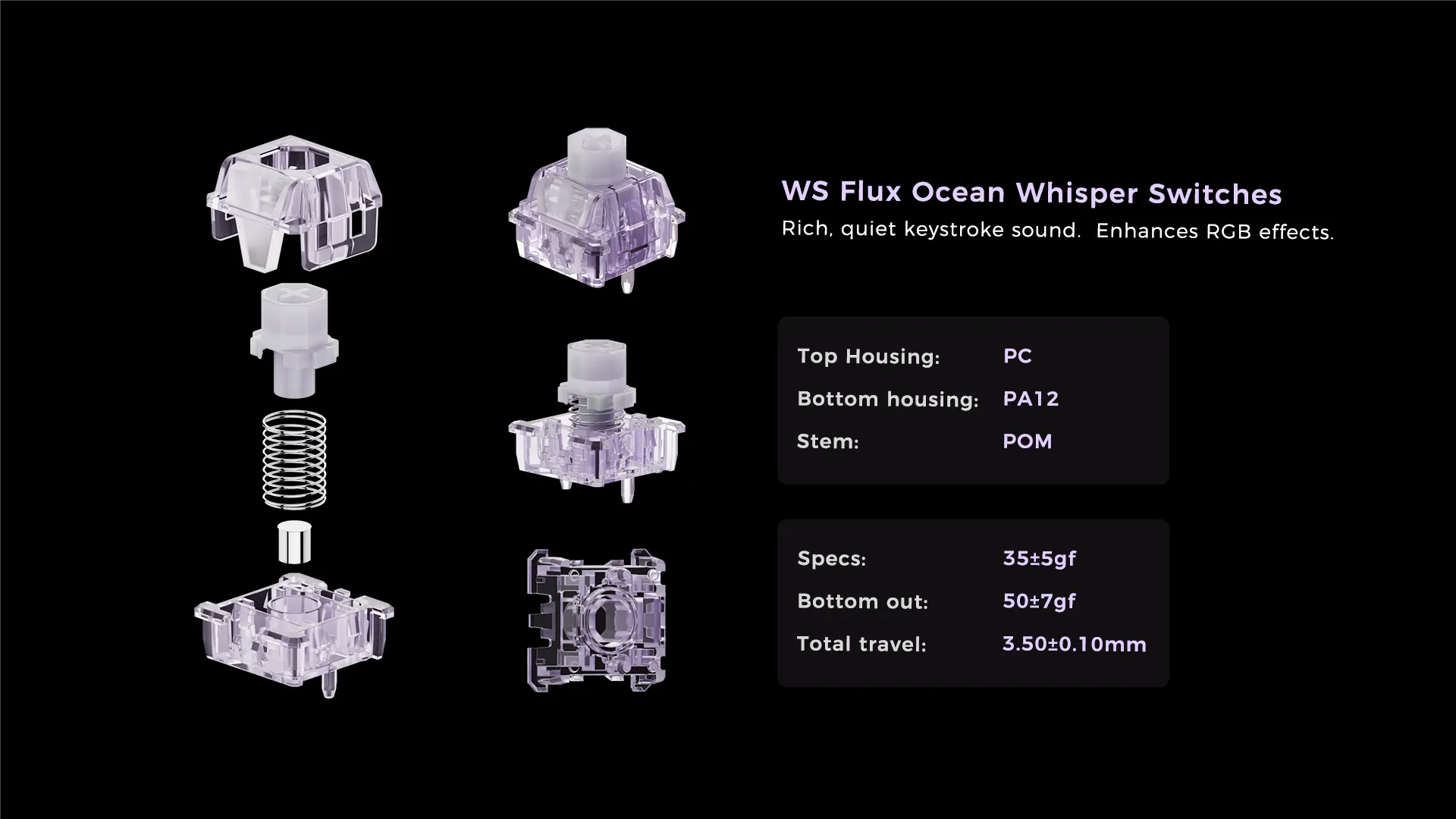

WS Flux Ocean Whisper switches
◦ Rich, quiet keystroke sound
◦ Enhances RGB effects

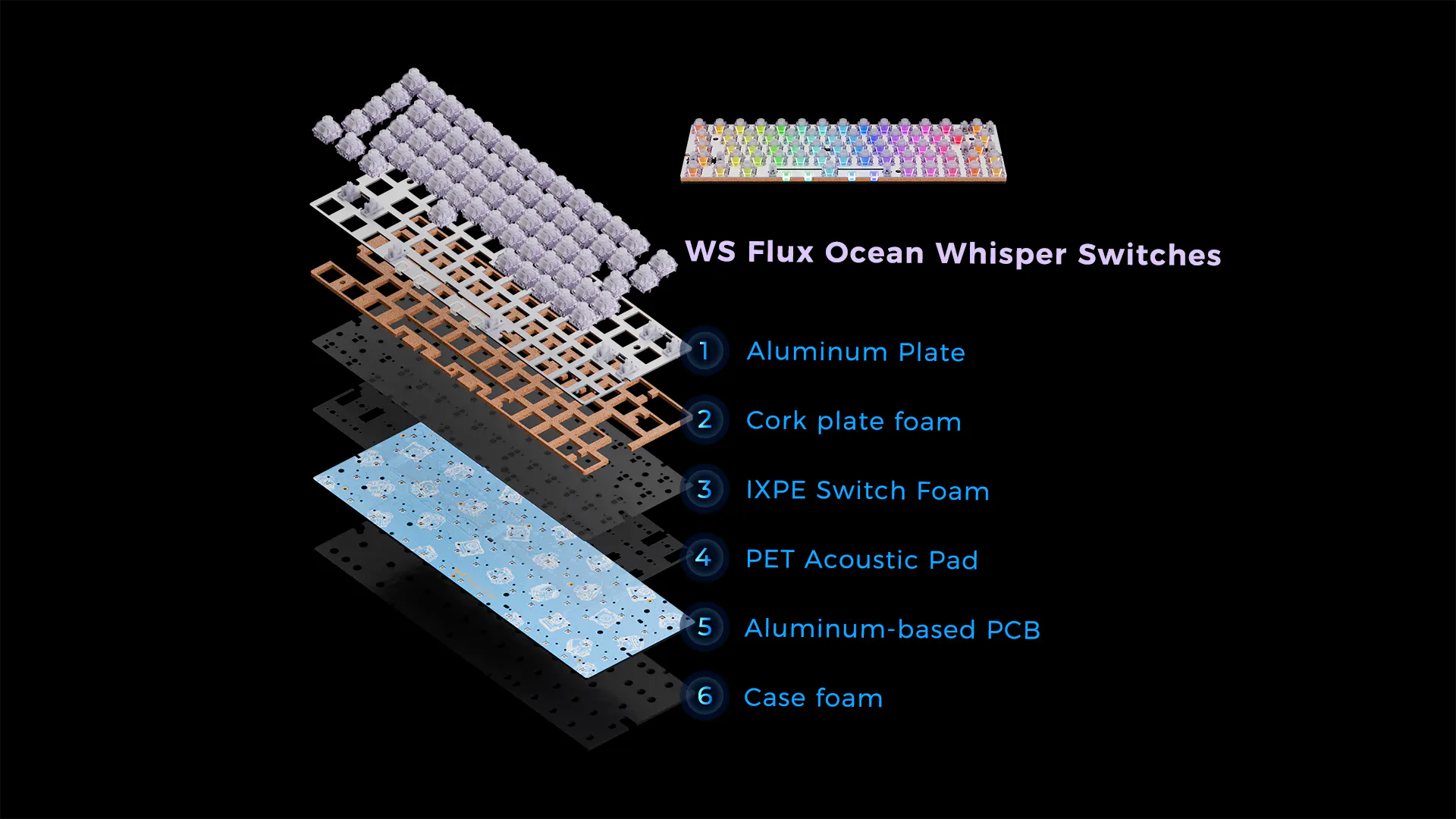

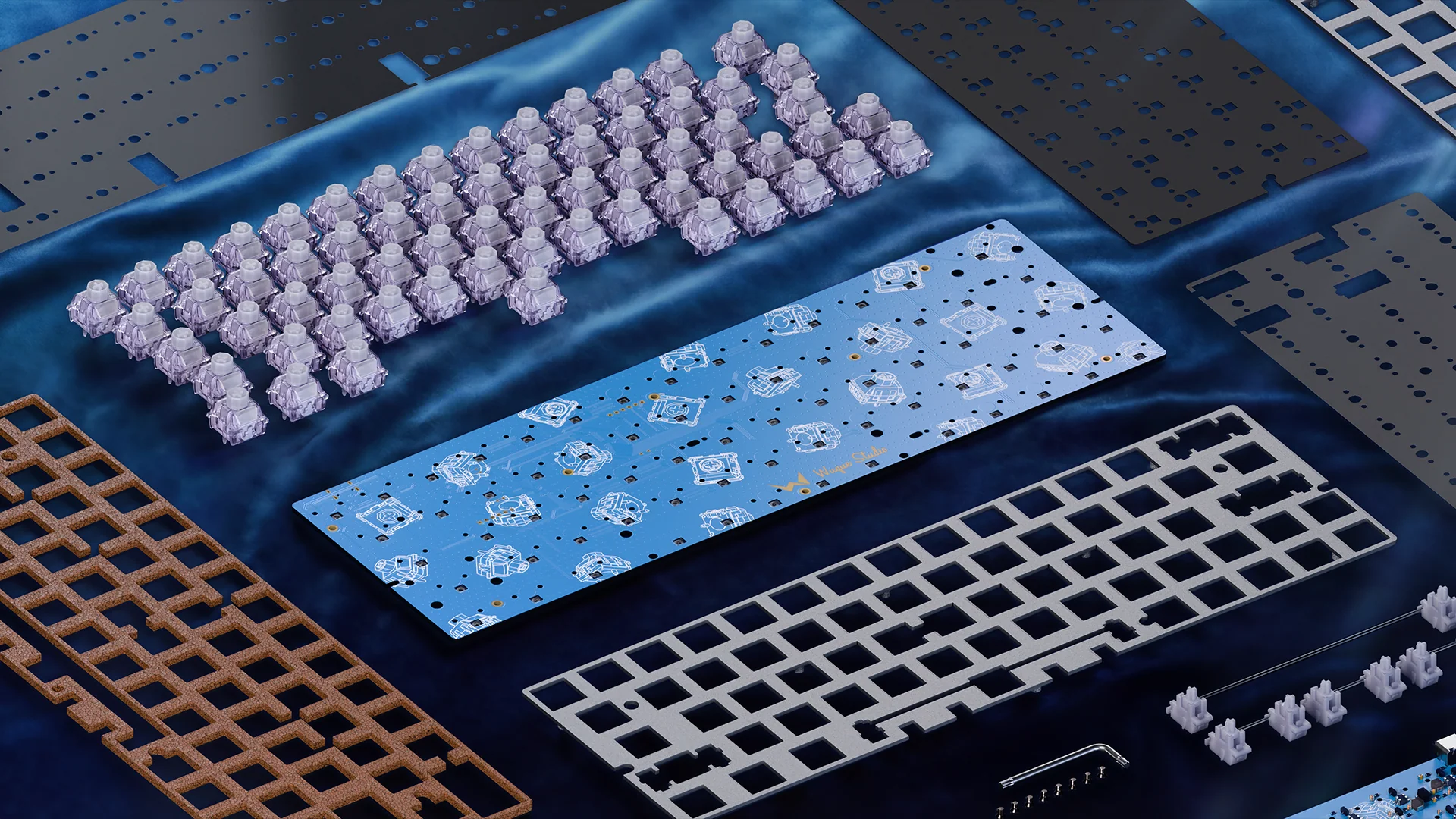

6-Layer Sound Optimization Kit
◦Aluminum Plate - Offers a consistent and supportive typing platform.
◦Cork Plate Foam - Preserves keystroke rhythm and provides crisp feedback.
◦IXPE Switch Foam - Focuses and purifies the bottom-out sound.
◦PET Acoustic Pad - Effectively eliminates case echo.
◦Aluminum-based PCB - Prevents actuation errors from flex and aids heat dissipation.
◦Case Foam - Conforms to the PCB to dampen structural resonance.
Media & Reviews

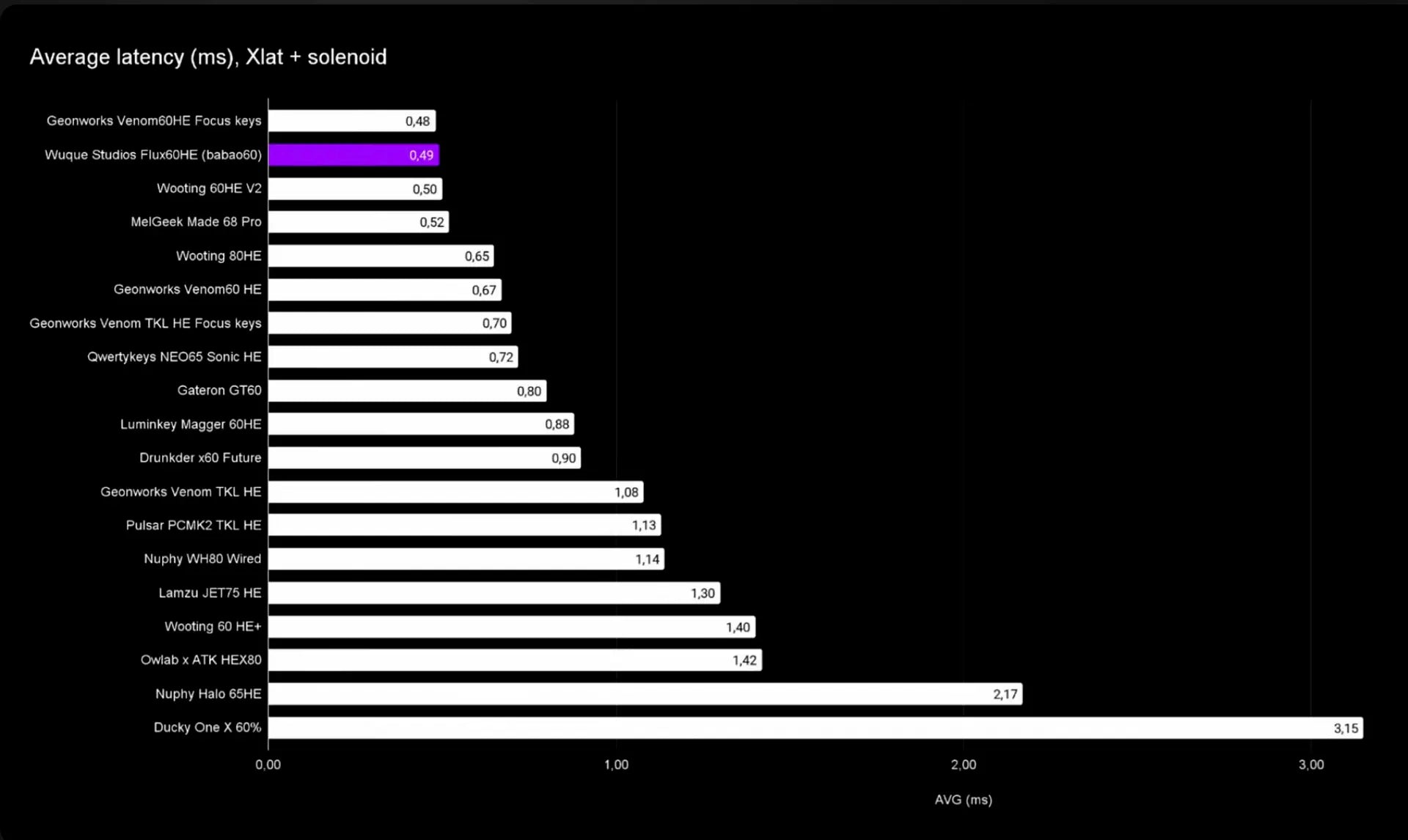

“It is a beast when it comes to sheer latency numbers; it basically rivals the Venom 6he and the Wooting 60hev2 on my tests. And I did rerun the tests multiple times, all with dead zones at the lowest values and actuation at 0.1mm.”
— Jerrorr, Reviewer and gaming peripheral enthusiast.
1,000+ reviews in China
What buyers say
Translated from verified Taobao reviews. Screenshots below each quote.★★★★★
The anodizing is flawless — night and day from the stock plastic case. Feels like one solid piece.
★★★★★
Install took ten minutes with the included kit. The sound went from hollow to deep instantly.
★★★★☆
Better machining than my last group-buy case at half the price. The weight keeps it planted mid-flick.
Buy the bundle
Complete your build
Everything below fits this case. Add what your build is missing — one click, same checkout.
Bundles
Pick your bundle
One click adds the whole build to your cart.Case OnlyThe aluminum upgrade. Your parts, our case.
Pick the products for this bundle in the section settings.
$0.00
MOST POPULARCase + EssentialsCase, switches and cable — bring your PCB and keycaps.
Pick the products for this bundle in the section settings.
$0.00
Full BuildEverything in the box. Plug in and play.
Pick the products for this bundle in the section settings.
$0.00
Compatibility
Will it fit your board?
Pick your keyboard. We answer before you pay.
✓ Drop-in fit
Unscrew your PCB, seat it, screw it down. No soldering, no firmware — toolkit included.
Let's check together
Message us with your PCB model — we confirm fitment before you order. Most GH60-layout PCBs fit.
64/63/61-key variants: message us and we'll confirm before you order.
Sound test
Hear the difference
Same board, same switches, same keycaps. The only change is the case.
BEFORE
Stock plastic case
Hollow, rattly high end.Sound clip coming soon
AFTER
AIM60X aluminum
Deep, solid, planted.Sound clip coming soon
