RAKKA60 ATLAS MOD
A Hall Effect 60% PCB that splits the RGB board off the main PCB, so lighting heat never touches your key scanning. Measured actuation latency around 0.14 ms.
Read MoreSpecs
Switch type
Hall Effect (magnetic)
Layout
GH60 60%
Architecture
Dual-PCB, isolated RGB and main PCB
Latency
Around 0.14 ms actuation
- Regular price
- $240.00
- Sale price
- $240.00
- Regular price
-
RAKKA 60 ATLAS

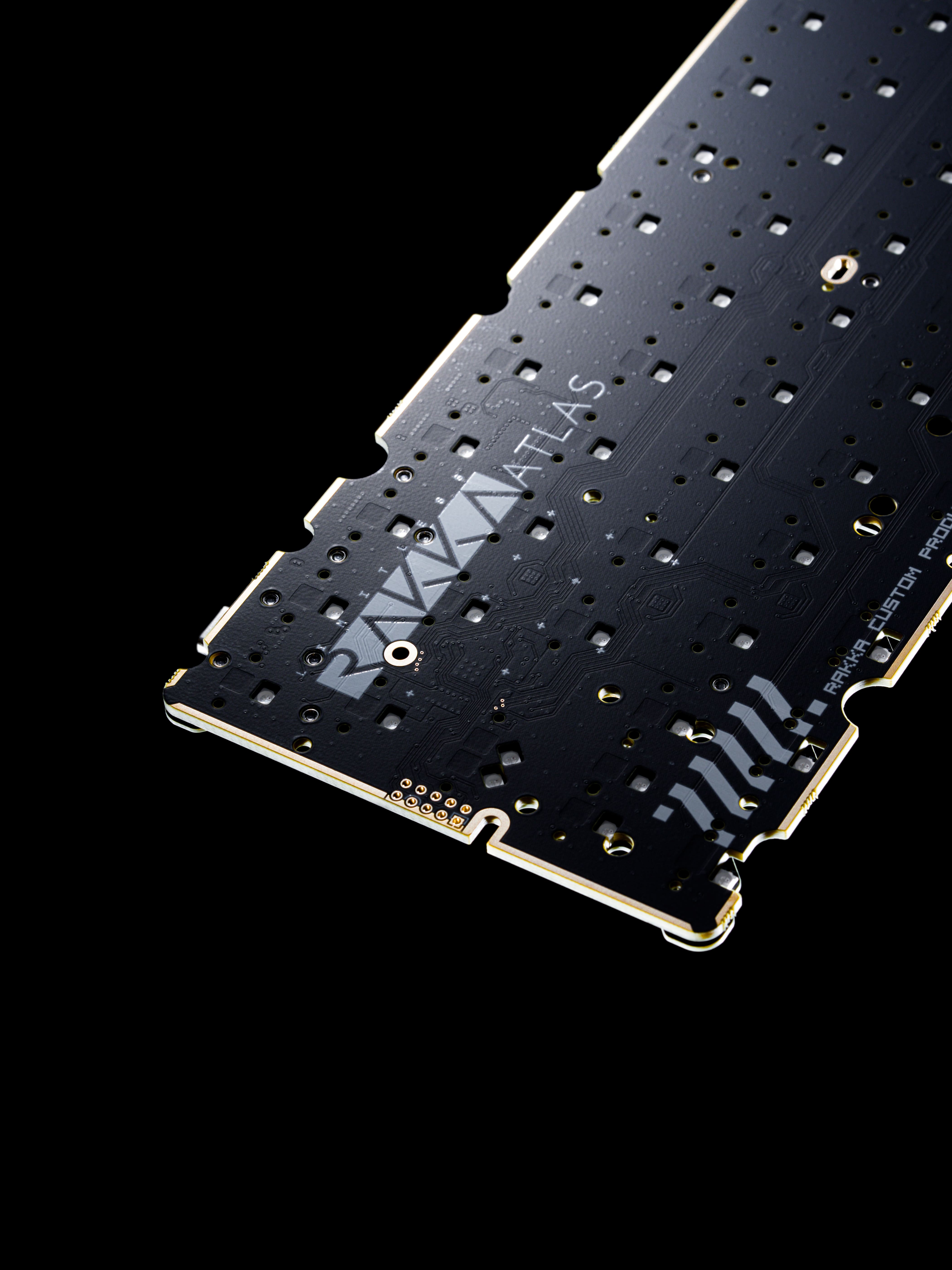

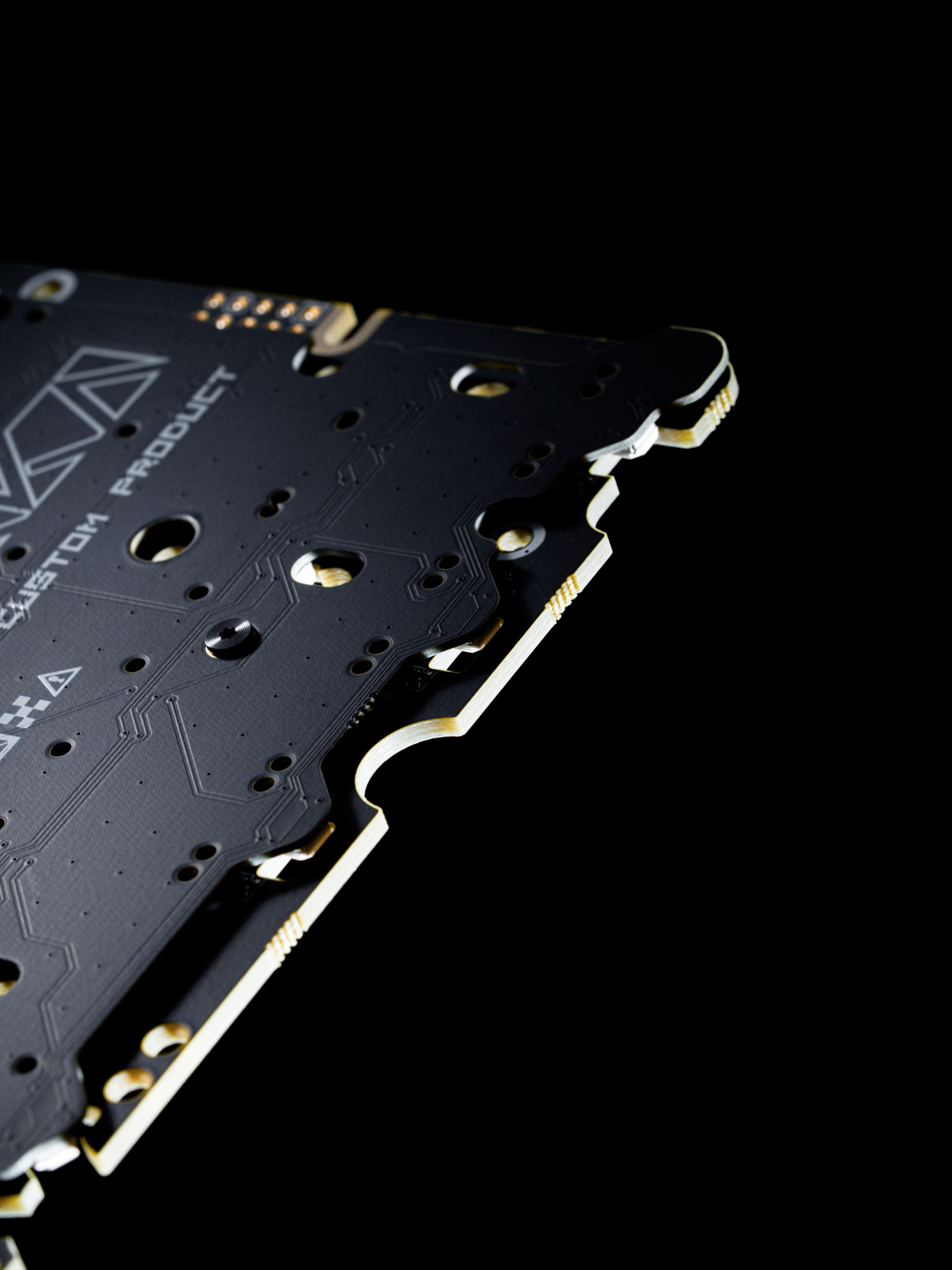

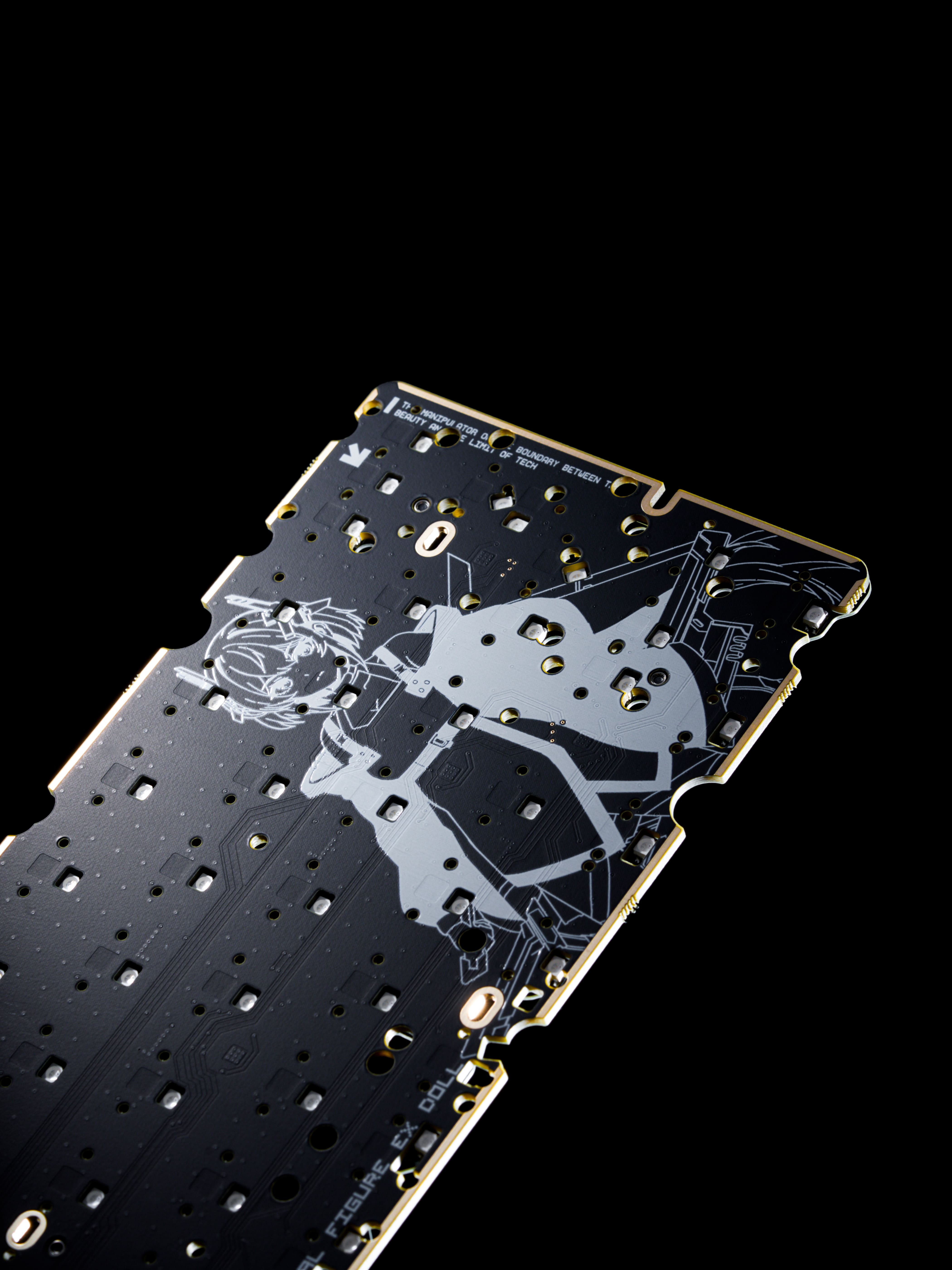

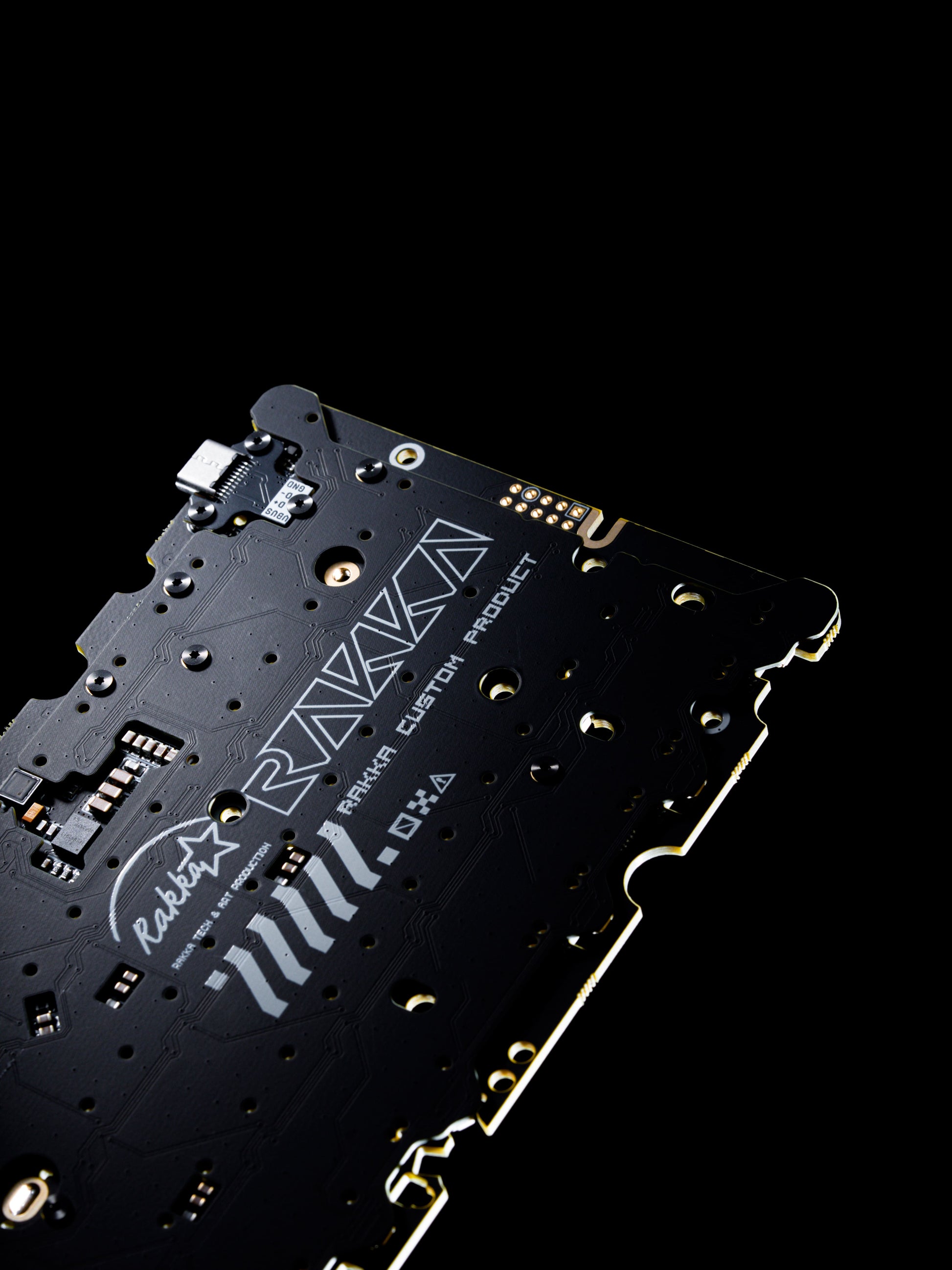

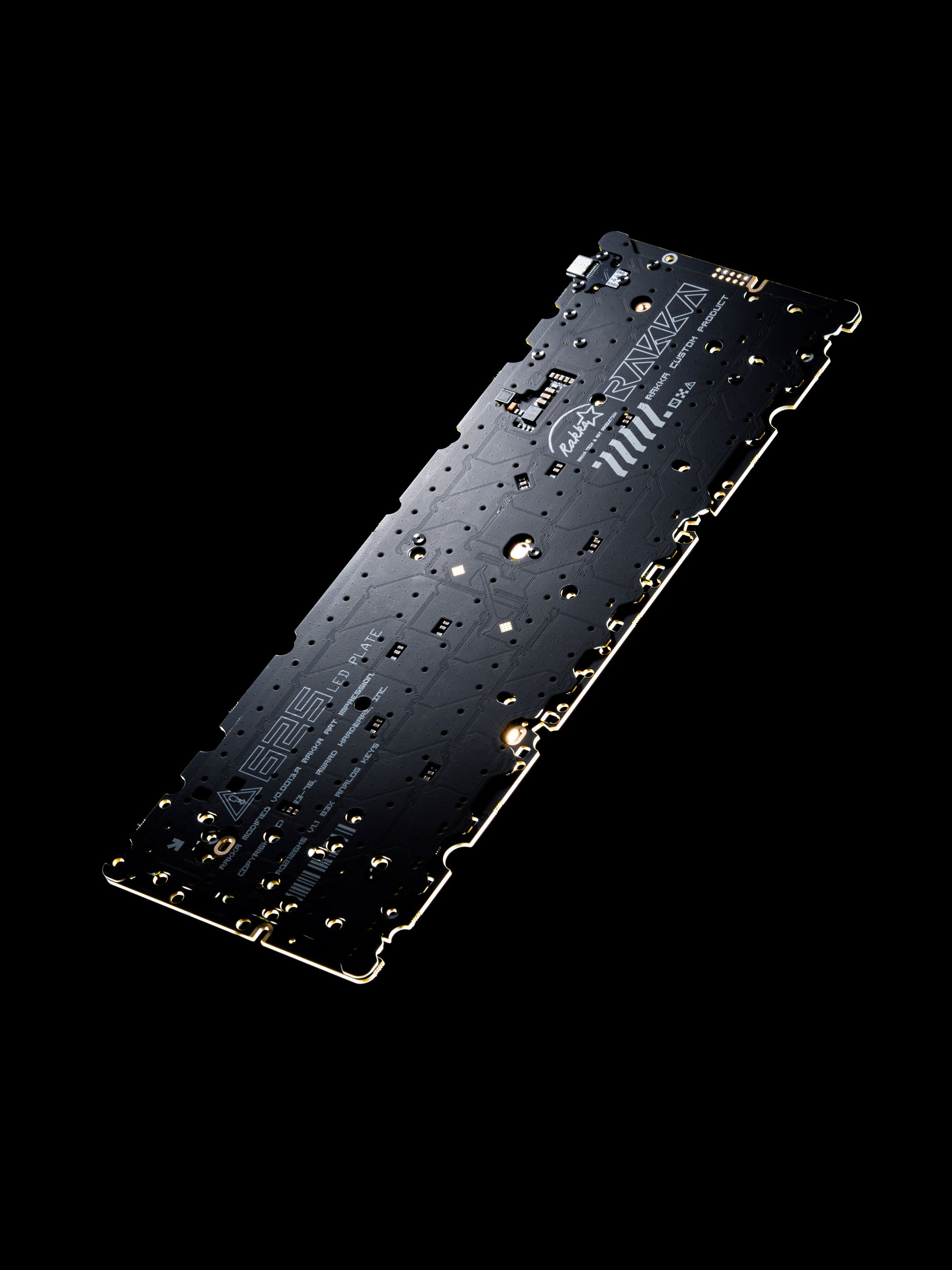

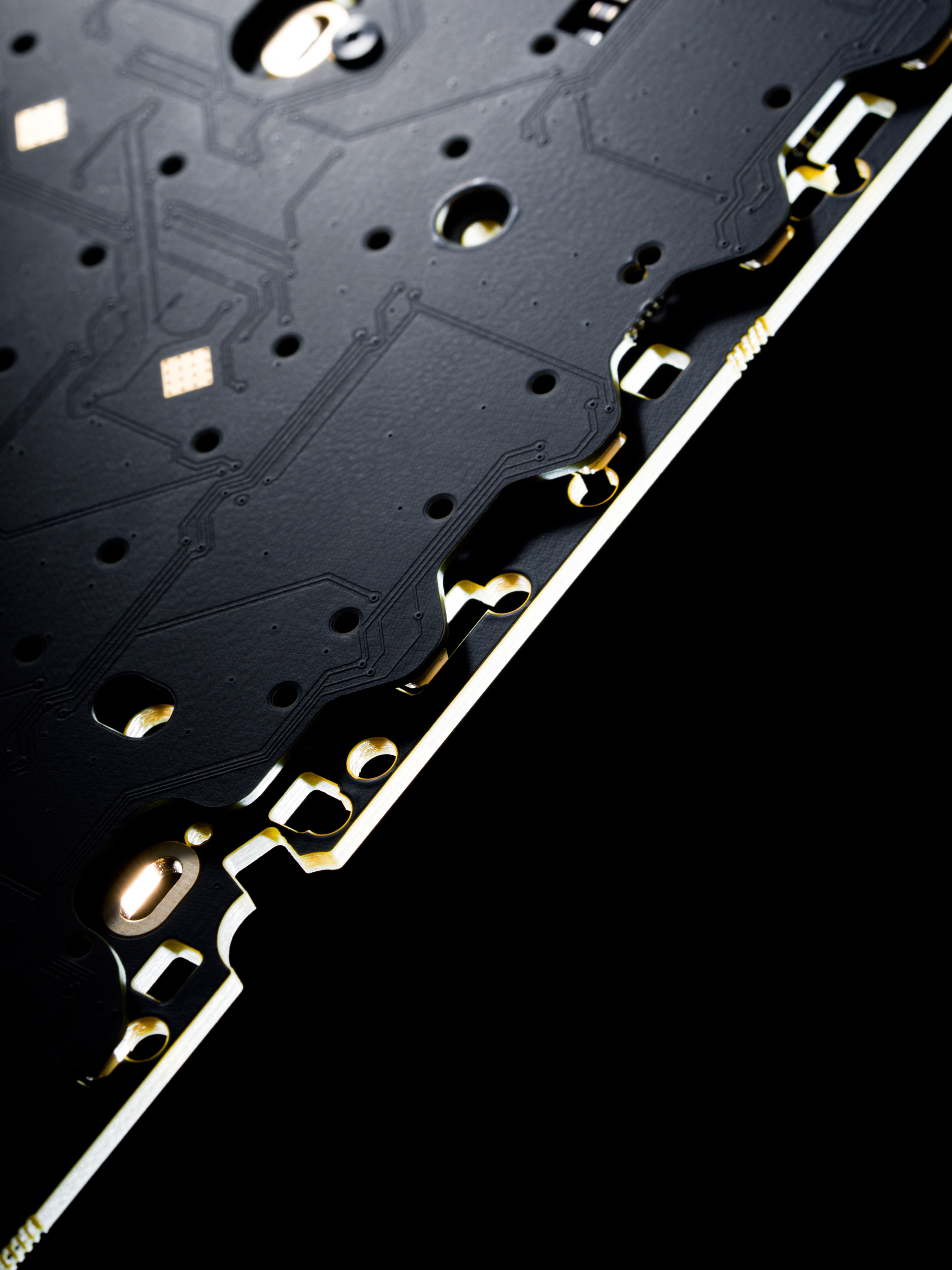

A Hall Effect 60% keyboard PCB module with an innovative dual-PCB architecture: the RGB LED board and main PCB are physically separated, isolating lighting heat from key signal scanning. This enables brighter, more stable RGB without any performance compromise. Supports nearly all mainstream 60% layout variants — standard/split Backspace, ANSI/ISO Enter, and split spacebar. Features a detachable USB-C daughterboard for broader case compatibility. Measured actuation latency ~0.14 ms.
What’s in the box
· 1× PCB

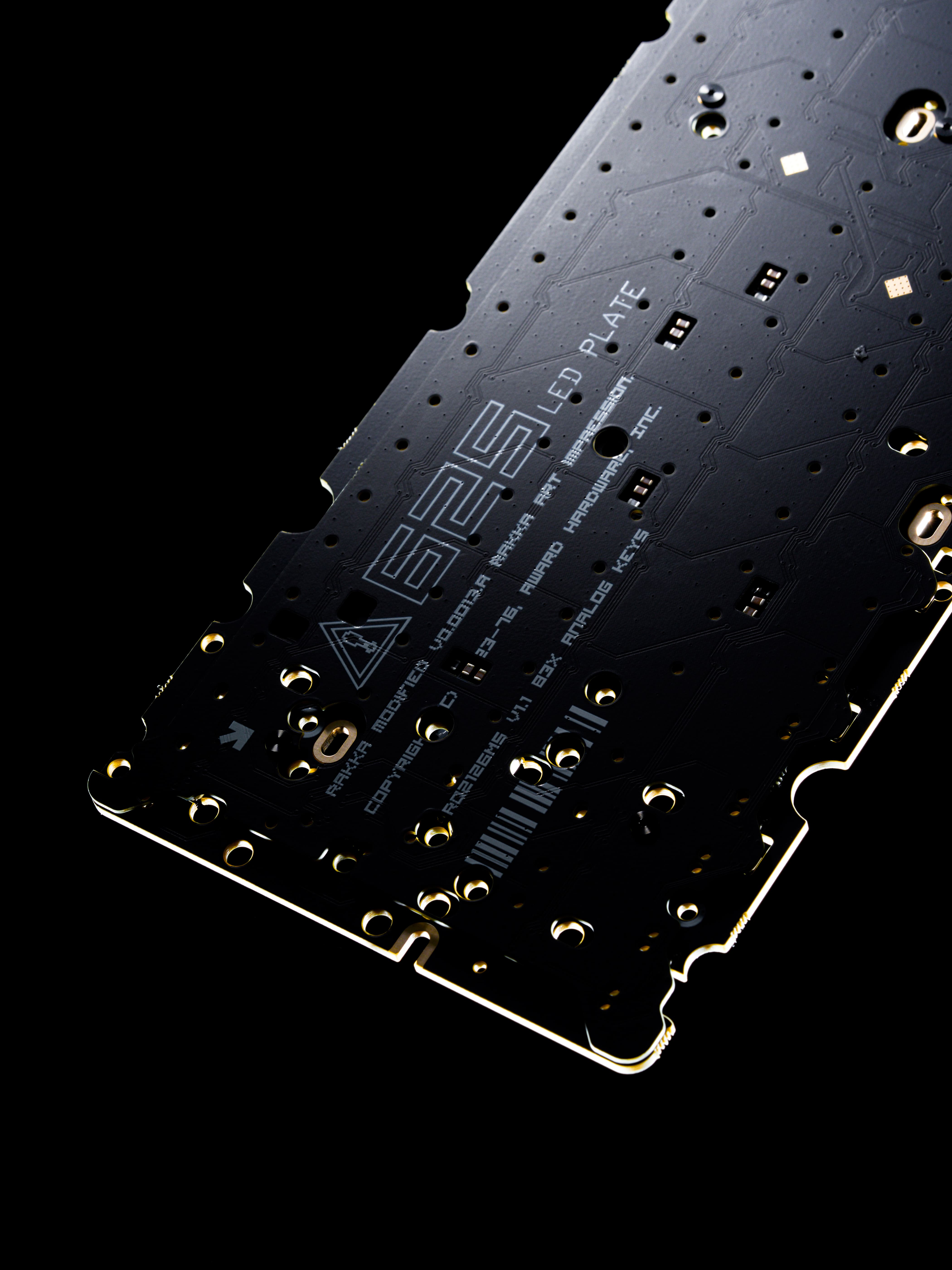

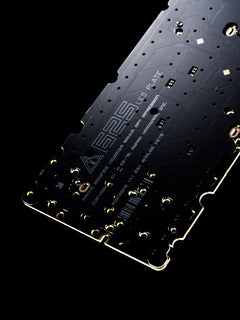

· 1× The LED backplane PCB
is pre-installed
· 1× Steel Plate Satellite Axis Positioning Board
Depending on the arrangement options, there are 4 versions(1), depending on the selection at the time of purchase, only the corresponding version will be included
Pre-installed
· 1× Steel plate satellite shaft kits:
6× 200U, 1× 625U, 1× 700U, 2× 300U steel wire
· 1× Möbius Switch Set
Included only in the switch version; quantity varies
slightly depending on the arrangement. Pre-installed
· 1× Sandwich cotton
Sound-absorbing cotton
installed between the positioning board and PCB is pre-installed(2)
· 1× Lamp panel cotton
Sound-absorbing cotton
installed between the PCB and the LED backplane is pre-installed
· 1× USB Type-C small board
is pre-installed
· 1× Unified Daughterboard C Series
· 1× USB Type-C to USB Type-A cable
· 1× A two-in-one tool for key pullers and screwdrivers
· 1× Puller
· 4× A pre-cut Möbius shaft(3)
· 8× Spare screws
(1)To accommodate different layouts (6.25U spaces; 7U Space; 2.25 1.25 2.75 Split space; 3 1 3 split space), the steel plate satellite shaft positioning plate comes in 4 versions, with the included version depending on the choice at the time of purchase. When replacing the above arrangements later, you need to prepare the corresponding positioning plates yourself.
(2)The cotton in the blank sections is divided into four types according to different arrangements: one comes pre-packed, and the other three are included.
(3)Used for CapsLock/ladder CapsLock, 625U space/125U space.
Specifications
Switch type
Hall Effect (magnetic)
Layout
GH60 60%
Architecture
Dual-PCB, isolated RGB and main PCB
Latency
Around 0.14 ms actuation
Connector
Detachable USB-C daughterboard
Layout support
Standard and split Backspace, ANSI and ISO Enter, split spacebar
Compatibility
AIM60, AIM60X, AIMCUBE, and other GH60-layout cases

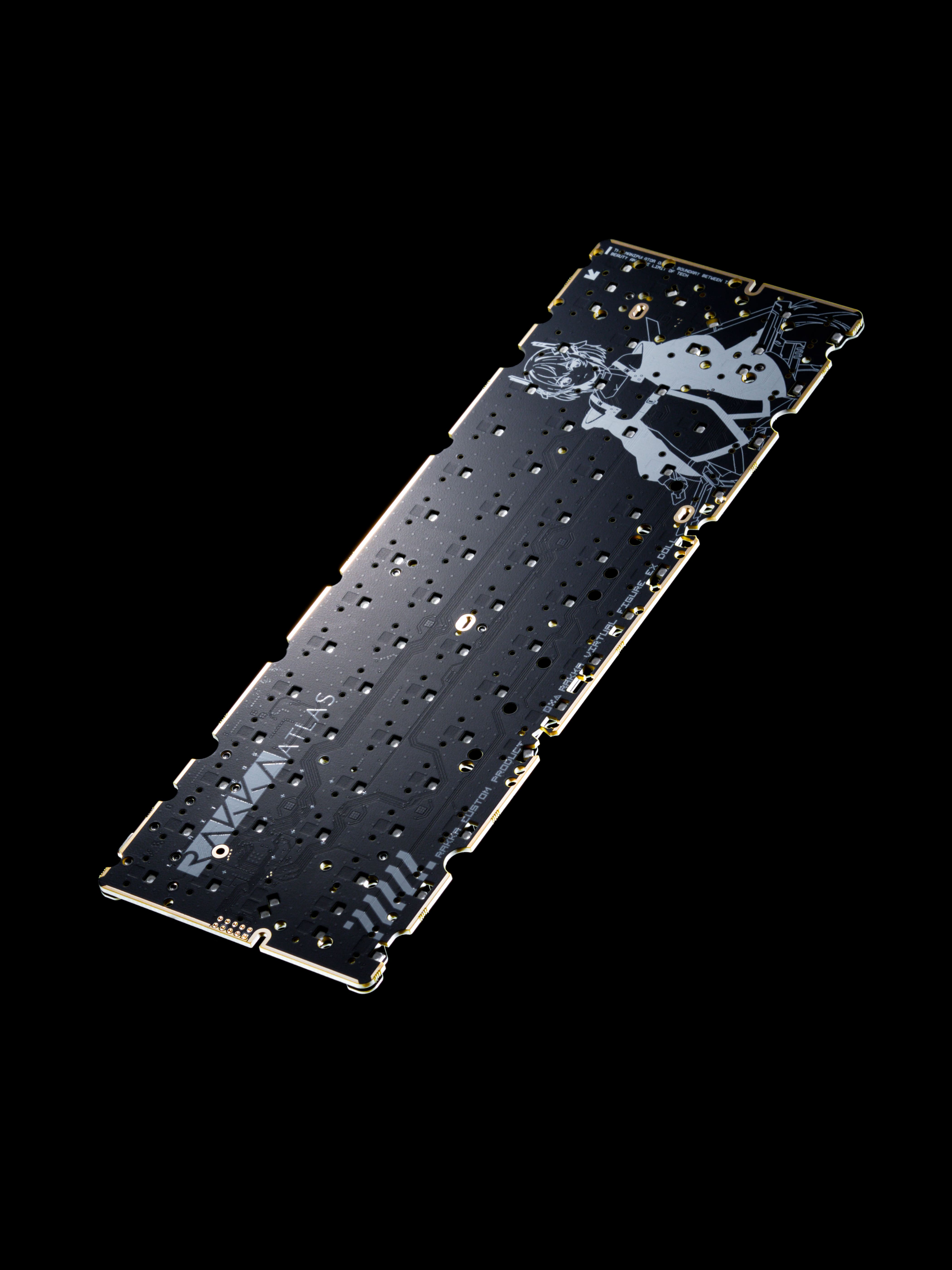

Brand new architecture — Separation of LEDs and keys
At the physical level, RGB LED signal and heat interference are isolated, allowing the main keyboard PCB to focus on efficiently handling key functions.
Faster than fast
Response speed (latency) is the top priority —
RAKKA 60 ATLAS adopts the same underlying solution as the 80 Edge,
and through further extreme optimization of hardware and software, its performance reaches new heights.

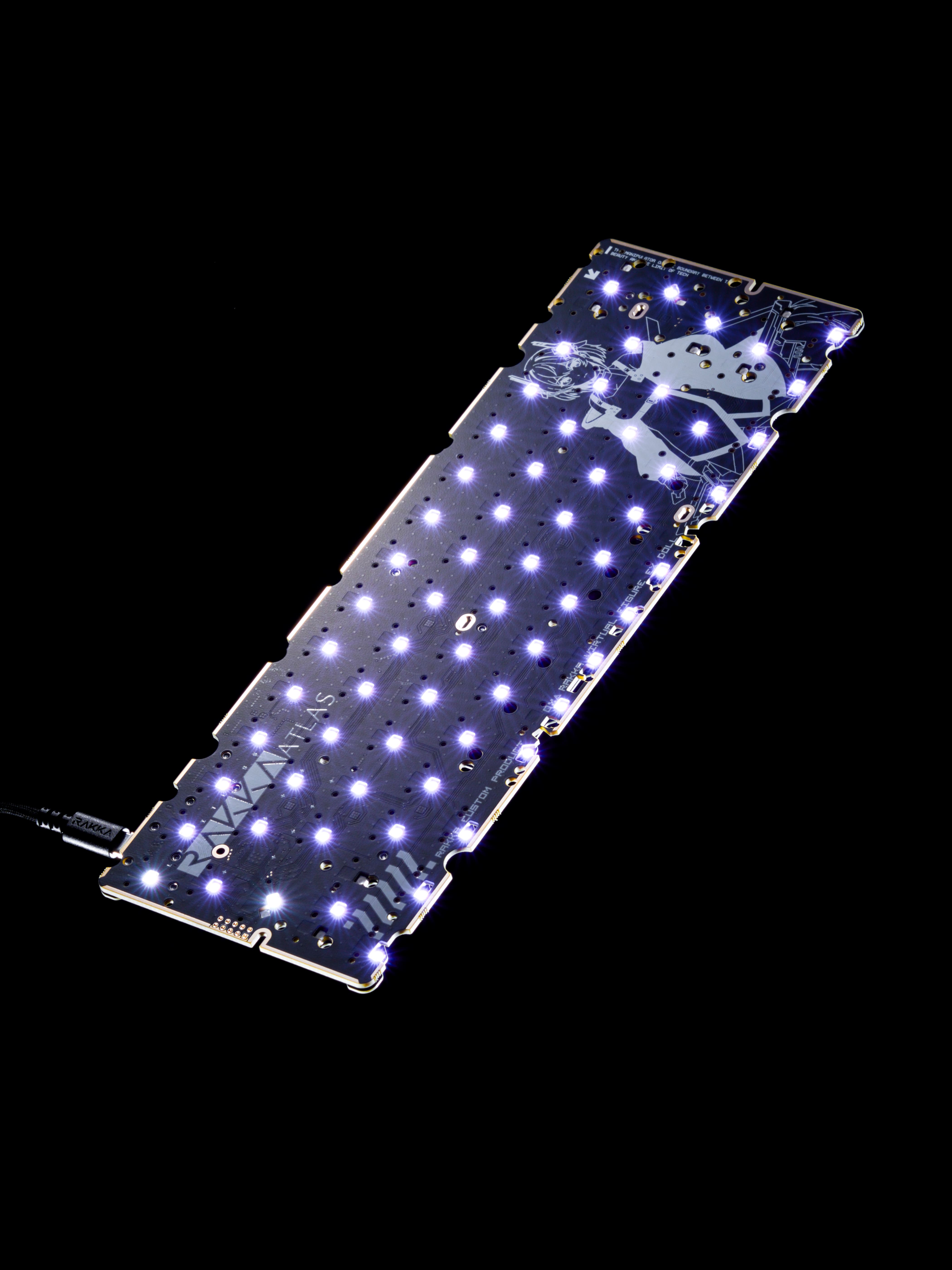

Brighter than bright
Thanks to the new architecture,
RAKKA 60 ATLAS can fully unleash the brightness of RGB LEDs.
Compared with RAKKA 80 Edge, LED brightness is increased by 30%, with peak brightness boosted up to 50%.
As always, brightness has no impact on performance.

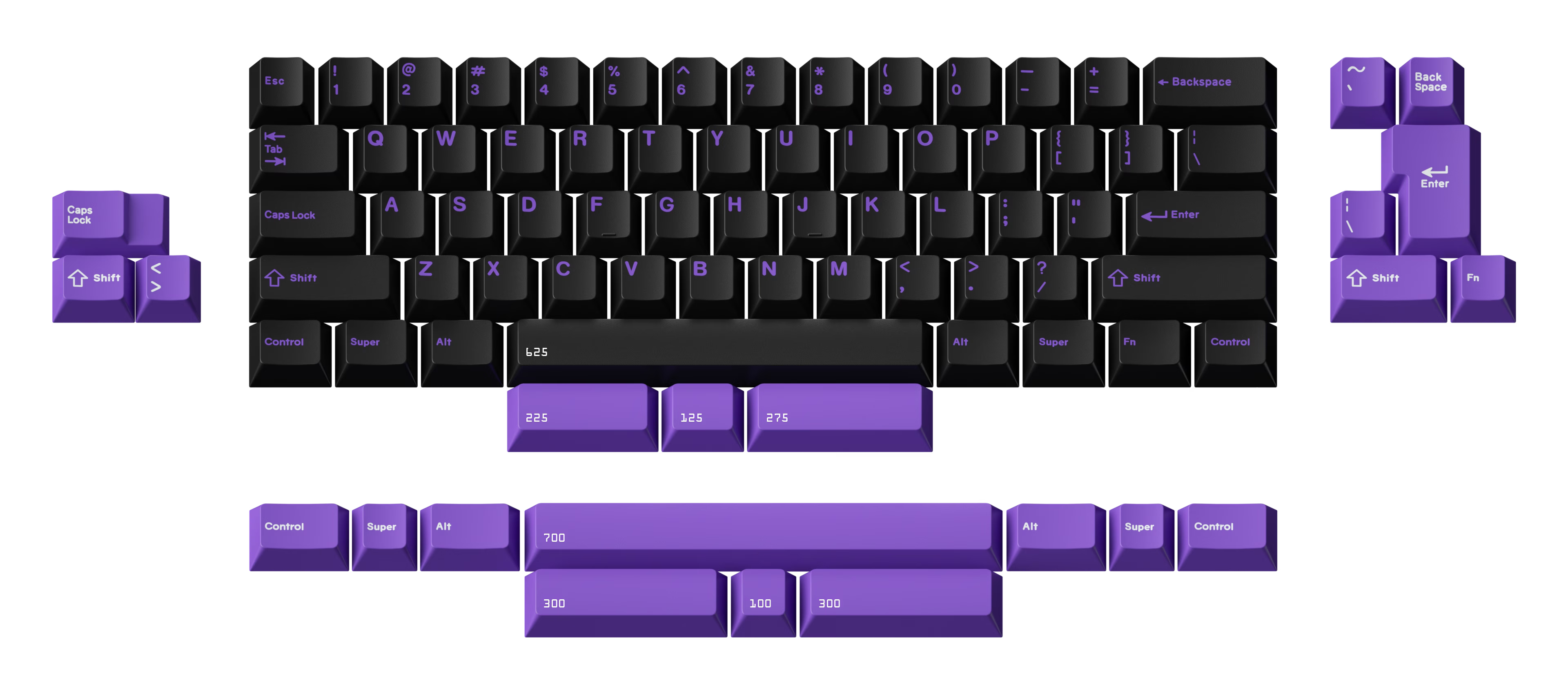

Almost all layout options
RAKKA 60 ATLAS supports nearly all 60% layout variations.
All options are integrated into a single PCB.
Wide enclosure compatibility

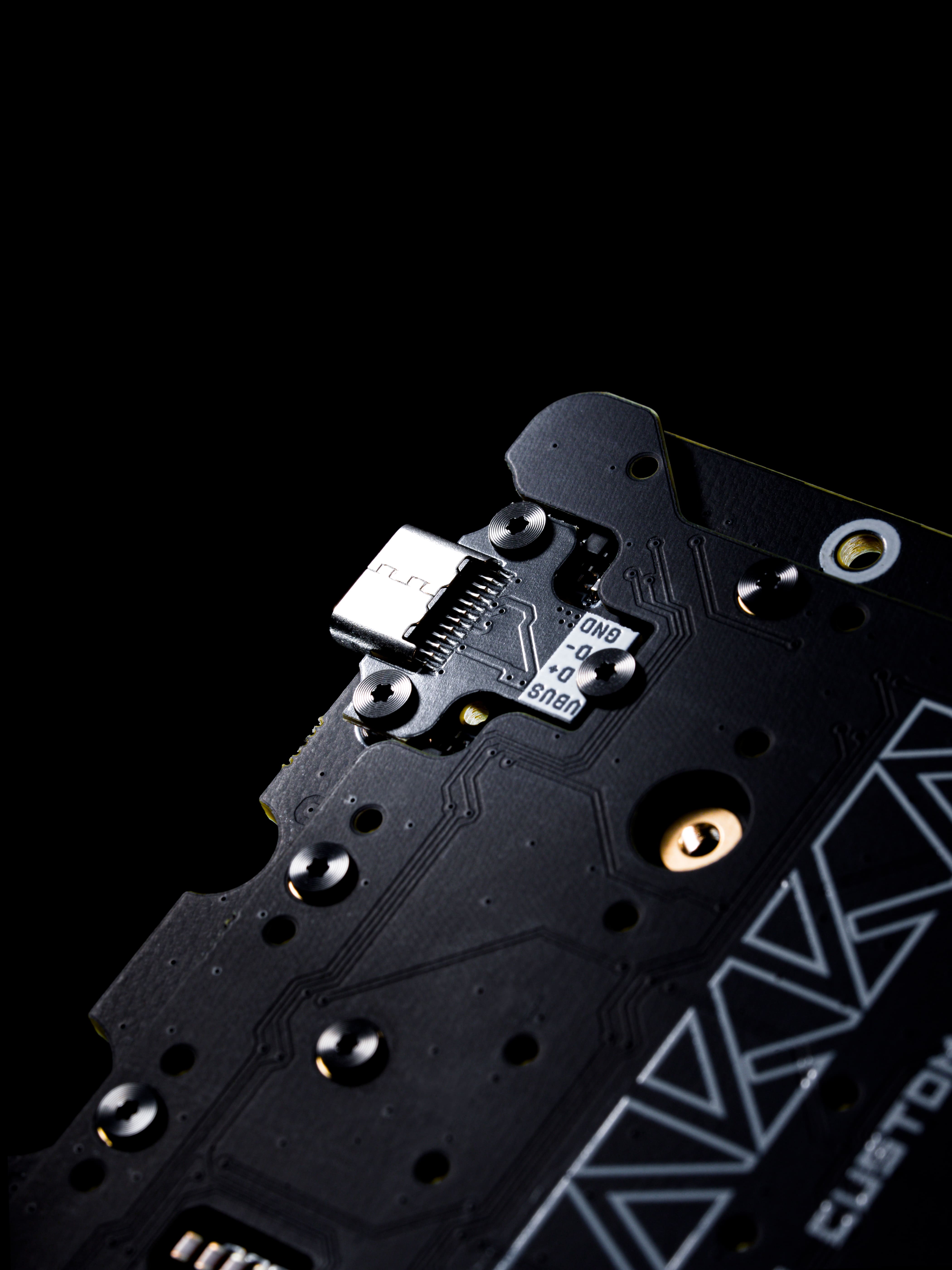

We placed the USB Type-C port on a detachable motherboard. This makes compatibility with more types of enclosures possible:
1. Standard GH60 housing
2. Use the shell of the Unified Daughterboard subboard
3. Use the O-Ring housing
Almost all layout options

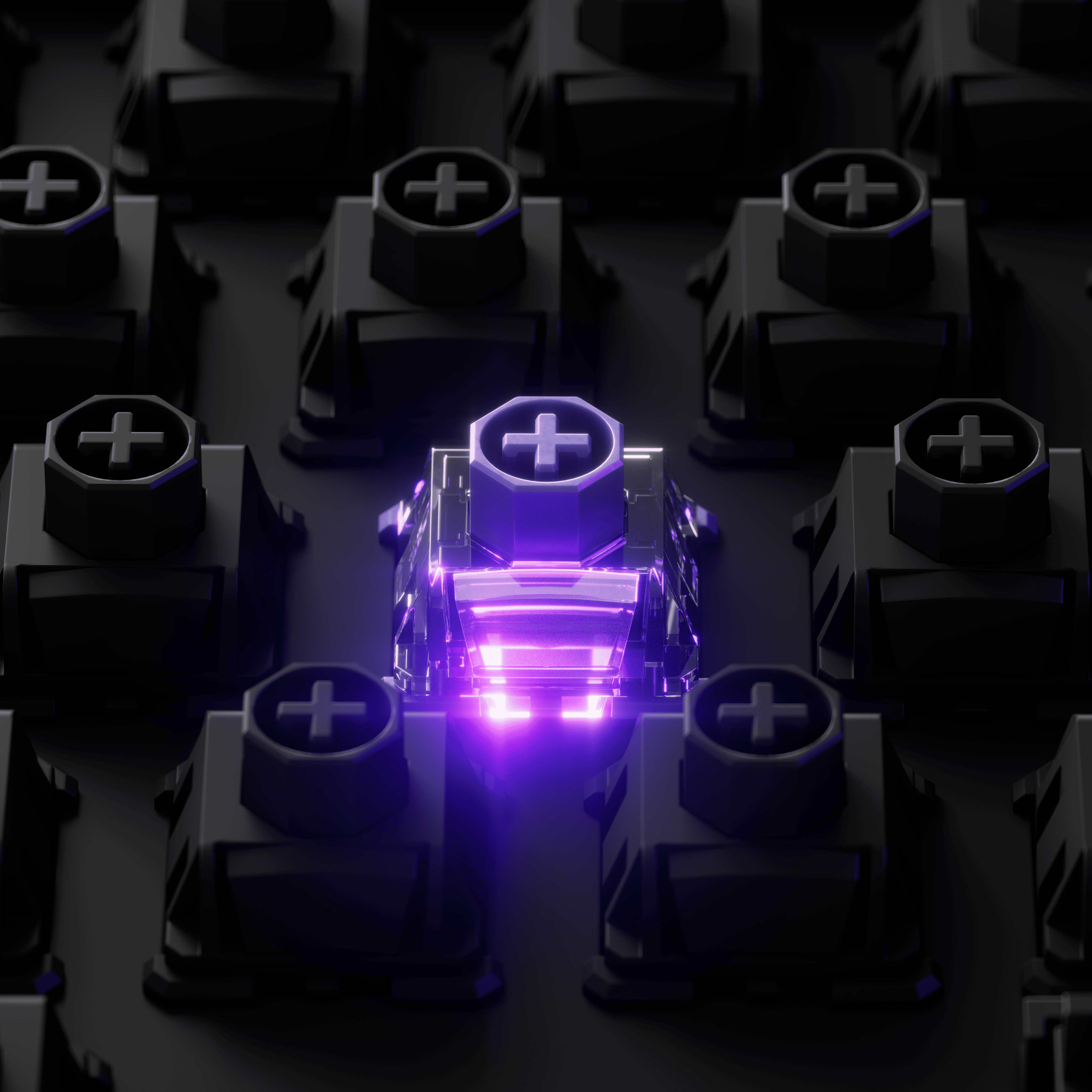

Style Linear
Total trip 3.5mm
Initial force 35±5gf
Bottoming out 50±7gf
Material
Axis: Modified POM
Housing: Modified PA66
Factory pre-lubrication

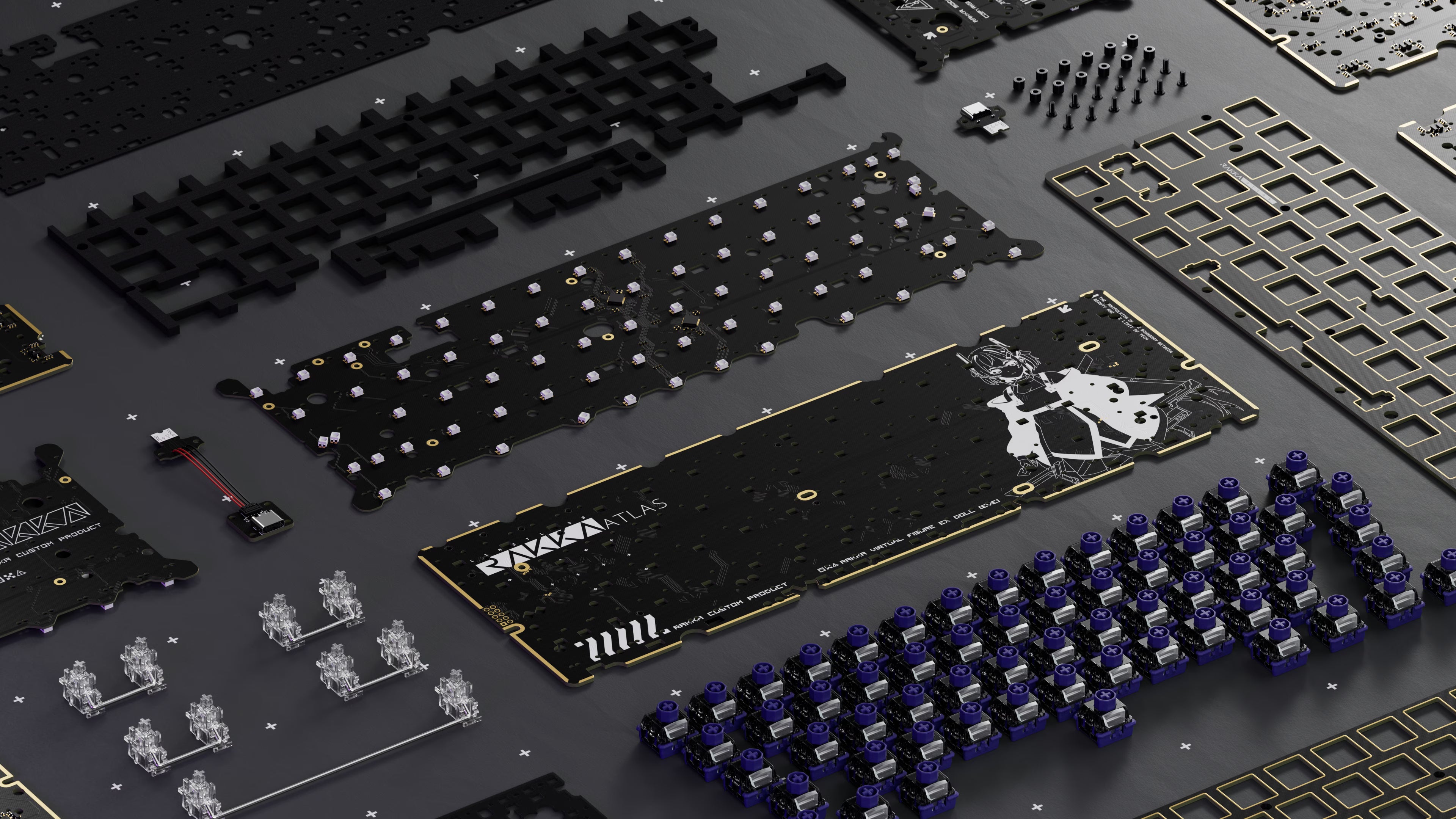

Every Part, Numbered
Hover a point on the image to see what it is.
